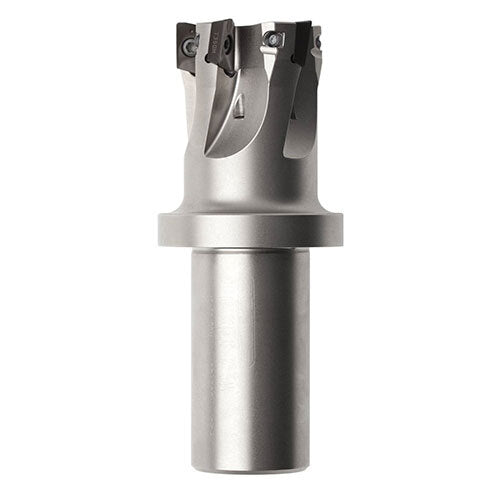

Seco R217.69-2532.3S-12-4AN Square Shoulder Milling Cutter
Available
Genuine Seco Turbo 12 Milling Cutter (Shank - Seco-Weldon) - With Through Coolant supply.
Key Specifications
| Shank Type | Seco-weldon |
|---|---|
| Insert Size | 12mm |
| Additional Details | With Shank. General purpose, larger depth. Maintains high tolerances and optimum precision. Extremely flexible and reliable. Coated & hardened cutter body. |
About Turbo Square Shoulder Milling Cutter
Aggressively optimize your cutting properties with Seco’s Turbo family of cutters that reduce heat generation and cutting forces. These cutters are available in a variety of configurations, all with copy milled pockets for insert stability and two pitch configurations to tackle almost every material. Maximize output in a wide range of applications including; roughing, semi-finishing, finishing. Methods include all facing, slotting, profiling contouring, helical interpolation, ramping, and plunging applications. Cutter range 20-250 mm (0.75-8 inch). Max depth of cut 11 mm (0.433 inch). Recommended slotting depth of cut 6 mm (0.236 inch). Insert corner radii range 0.4-6.3 mm (0.016-0.248 inch).
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turbo 12 Milling Cutter (Shank - Seco-Weldon) - Coolant Supply: R217.69-2532.3S-12-4AN
SKU: A0118842 | Model: 02676814
Seco 25 x 32mm Turbo 12 Square Shoulder Milling Cutter 4 Teeth - Seco-Weldon (Shank) R217.69-2532.3S-12-4AN
Turbo 12 Milling Cutter (Shank - Seco-Weldon) - With Through Coolant supply
With Shank.
Seco-Weldon shank type.
General purpose, larger depth.
12 mm insert size.
Maintains high tolerances and optimum precision.
Extremely flexible and reliable.
Coated & hardened cutter body.
About Turbo Square Shoulder Milling Cutter
Aggressively optimize your cutting properties with Seco’s Turbo family of cutters that reduce heat generation and cutting forces.
These cutters are available in a variety of configurations, all with copy milled pockets for insert stability and two pitch configurations to tackle almost every material.
Maximize output in a wide range of applications including; roughing, semi-finishing, finishing.
Methods include all facing, slotting, profiling contouring, helical interpolation, ramping, and plunging applications.
Cutter range 20-250 mm (0.75-8 inch).
Max depth of cut 11 mm (0.433 inch).
Recommended slotting depth of cut 6 mm (0.236 inch).
Insert corner radii range 0.4-6.3 mm (0.016-0.248 inch).
