Seco R217.69-2020.3-12-2AN Square Shoulder Milling Cutter
Available
Genuine Seco Turbo 12 Milling Cutter (Shank - Weldon) - With Through Coolant supply.
Key Specifications
| Shank Type | Weldon |
|---|---|
| Insert Size | 12mm |
| Additional Details | With Shank. General purpose, larger depth. Maintains high tolerances and optimum precision. Extremely flexible and reliable. Coated & hardened cutter body. |
About Turbo Square Shoulder Milling Cutter
Aggressively optimize your cutting properties with Seco’s Turbo family of cutters that reduce heat generation and cutting forces. These cutters are available in a variety of configurations, all with copy milled pockets for insert stability and two pitch configurations to tackle almost every material. Maximize output in a wide range of applications including; roughing, semi-finishing, finishing. Methods include all facing, slotting, profiling contouring, helical interpolation, ramping, and plunging applications. Cutter range 20-250 mm (0.75-8 inch). Max depth of cut 11 mm (0.433 inch). Recommended slotting depth of cut 6 mm (0.236 inch). Insert corner radii range 0.4-6.3 mm (0.016-0.248 inch).
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
R217.69-2020.3-12-2AN
Model Number: 02676817
-
R217.69-2525.3-12-3AN
Model Number: 02676819
-
R217.69-3232.3-12-4AN
Model Number: 02676823
-

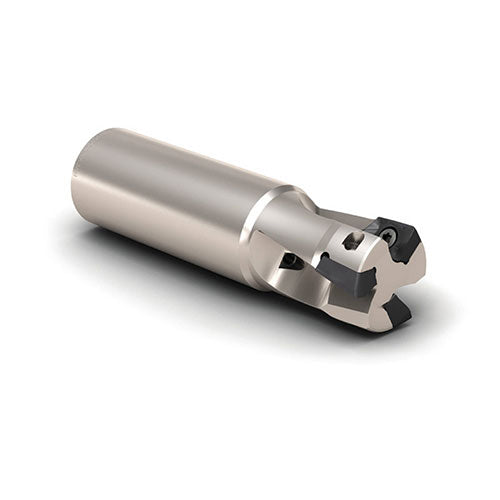

R217.69-3232.3-12-3AN
Model Number: 02676820
