Seco CCMT09T308-F1 TM2501 Turning Insert
The price shown is for the pack.
Available

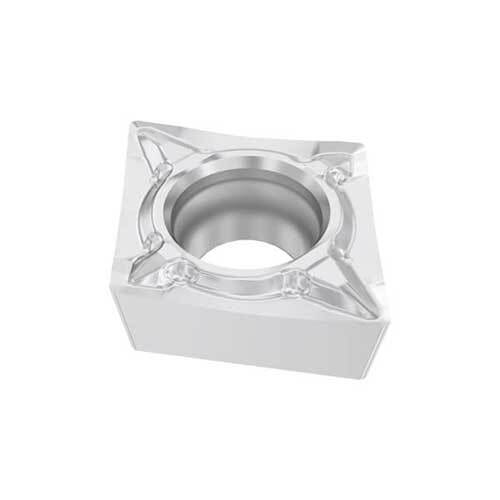

Genuine Seco 80° rhombic (diamond) turning insert, Grade TM2501 with F1 chipbreaker.
Key Specifications
| Grade | TM2501 |
|---|---|
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | F1 |
| Insert Details | C shape code. T Insert Type. 7° insert side clearance angles. Chamfered cutting edges. |
About Grade TM2501
Duratomic® grade. A highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness. First choice in austenitic stainless steel turning. Complements in steel turning with heavy intermittent cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome)
About the F1 Chipbreaker
Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties. Suitable for high feed rates at fine depths of cut in precision forgings and castings. Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm. Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert CCMT Insert Style - F1 7° Grade TM2501: CCMT09T308-F1 TM2501
SKU: A0158249 | Model: 03275940
Designation CCMT09T308-F1 TM2501. Turning Insert CCMT Insert Style - F1 7° Grade TM2501
C shape code.
T Insert Type.
7° insert side clearance angles.
Chamfered cutting edges.
TM2501 Insert Grade
Duratomic® grade.
A highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness.
First choice in austenitic stainless steel turning. Complements in steel turning with heavy intermittent cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome)
F1 Chipbreaker Programme
Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties.
Suitable for high feed rates at fine depths of cut in precision forgings and castings.
Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.
Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
