Description
Description

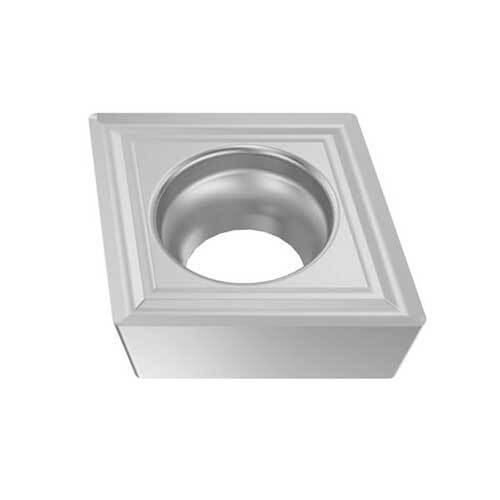

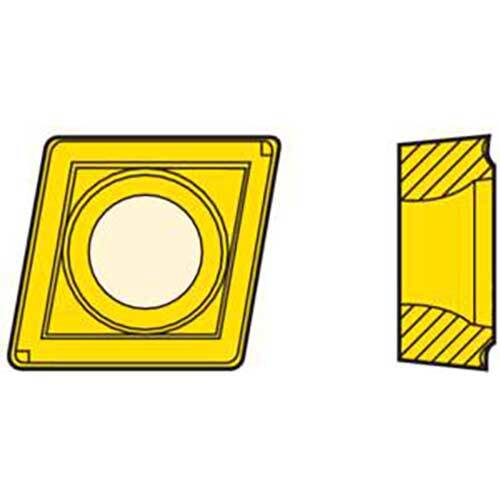

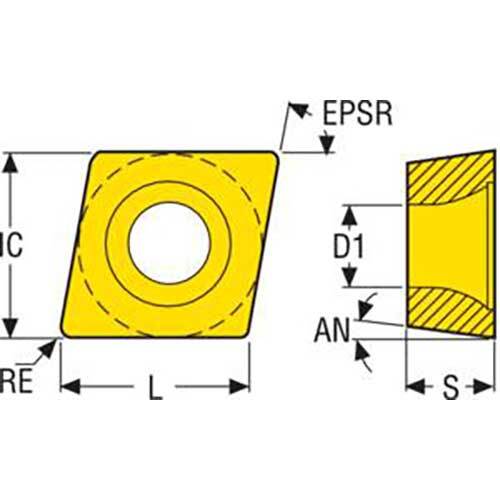

Turning Insert CCMT Insert Style - M3 7° Grade TM2501
- C shape code
- T Insert Type.
- 7° insert side clearance angles.
TM2501 Insert Grade
- Duratomic® grade.
- A highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness.
- First choice in austenitic stainless steel turning. Complements in steel turning with heavy intermittent cuts.
- Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
M3 Chipbreaker Programme
- First choice for medium-rough machining and also the most versatile Seco chipbreaker.
- In most cases, it is the only chipbreaker needed. Offers the best useful life and best chip breaking in a wide range of cutting data and workpiece materials.
- Suitable for precision forged and cast workpieces (NNS or Near Net Shape workpieces) as regards both chip control and edge strength.
- Recommended machining range: f = 0,15-0,50 mm/rev, ap = 0,5-5,0 mm. (f = 0.006-0.020 in/rev, ap = 0.020-0.200 inch)
About Seco Turning Insert
- Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
- Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
- to boost the productivity and tool life in your turning applications.
- Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Turning Insert CCMT Insert Style - M3 7° Grade TM2501
Turning Insert CCMT Insert Style - M3 7° Grade TM2501
SKU: A0158259
Type: Turning Insert
- Wide Range
- Reliable Services
- Proven Trust
Available
The Turning Insert CCMT Insert Style by SECO is a Turning Insert with Duratomic grade. It provides the recommended machining range f = 0,15-0,50 mm/rev, ap = 0,5-5,0 mm and is suitable for precision forged and cast workpieces.
