Turning Insert CNMG Insert Style - FF2 Grade TP1030
The price shown is for the pack.
Available
Genuine Seco 80° rhombic (diamond) turning insert, Grade TP1030 with FF2 chipbreaker. This is the CNMG insert style in grade TP1030, with the FF2 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 4 options.
Key Specifications
| Grade | TP1030 |
|---|---|
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | FF2 |
| Insert Details | C shape code. G insert type, with hole and chip breaker on both faces. TP1030 insert grade. |
About Grade TP1030
Coated highly wear-resistant cermet grade for high surface finish and productivity requirements mainly used in steels and stainless steels. Ti-Al-Si-N nanolaminate coating.
About the FF2 Chipbreaker
Chipbreaker for negative inserts. Intended for fine-finishing and semi-finishing of steels and stainless steels. The positive, tight chip groove offers light cutting action combined with superior chip forming. Indicative machining range: f = 0,08–0,30 mm/rev, ap = 0,2–1,5 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert CNMG Insert Style - FF2 Grade TP1030
SKU: A0117337 | Model: 02786789

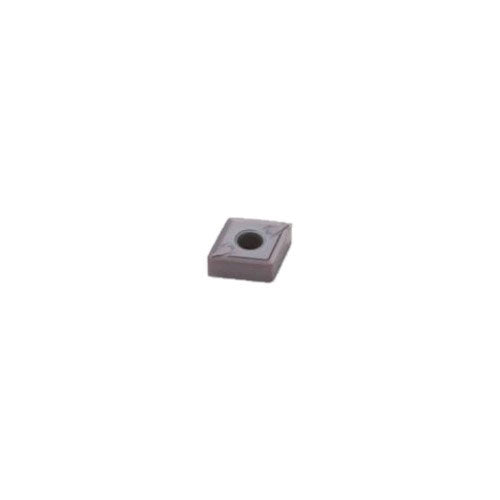

Seco Turning Insert C Shape Code 4.76 x 0.4 x 12.7mm G Insert Type - FF2 Grade TP1030 ± 0.13/± 0.05mm Tolerance CNMG120404-FF2,TP1030 10pcs
Turning Insert CNMG Insert Style - FF2 Grade TP1030
C shape code.
G insert type, with hole and chip breaker on both faces.
TP1030 insert grade.
TP1030 Insert Grade
Coated highly wear-resistant cermet grade for high surface finish and productivity requirements mainly used in steels and stainless steels.
Ti-Al-Si-N nanolaminate coating.
FF2 Chipbreaker Programme
Chipbreaker for negative inserts. Intended for fine-finishing and semi-finishing of steels and stainless steels.
The positive, tight chip groove offers light cutting action combined with superior chip forming.
Indicative machining range: f = 0,08–0,30 mm/rev, ap = 0,2–1,5 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
