Turning Insert CNMG Insert Style - M3 Grade TP25011

Turning Insert CNMG Insert Style - M3 Grade TP25012

Turning Insert CNMG Insert Style - M3 Grade TP25013

Turning Insert CNMG Insert Style - M3 Grade TP25014

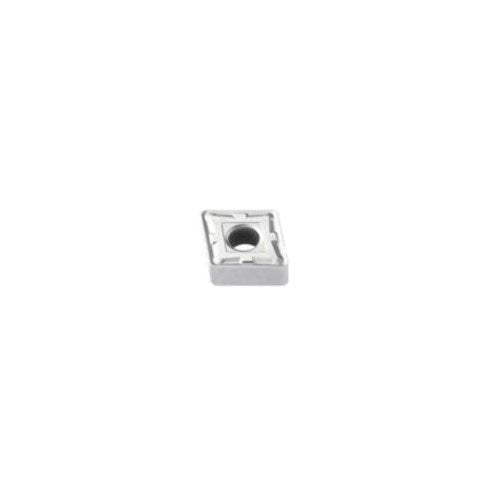

Seco Turning Insert C Shape Code 4.76 x 0.4 x 12.7mm G Insert Type - M3 Grade TP2501 ± 0.13/± 0.05mm Tolerance CNMG120404-M3,TP2501 - Pack of 10

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - M3 Grade TP2501 ± 0.13/± 0.05mm Tolerance CNMG120408-M3,TP2501 - Pack of 10

Seco Turning Insert C Shape Code 4.76 x 1.2 x 12.7mm G Insert Type - M3 Grade TP2501 ± 0.13/± 0.05mm Tolerance CNMG120412-M3,TP2501 - Pack of 10

Seco Turning Insert C Shape Code 4.76 x 1.6 x 12.7mm G Insert Type - M3 Grade TP2501 ± 0.13/± 0.05mm Tolerance CNMG120416-M3,TP2501 - Pack of 10

Seco Turning Insert C Shape Code 6.35 x 1.2 x 15.88mm G Insert Type - M3 Grade TP2501 ± 0.13/± 0.05mm Tolerance CNMG160612-M3,TP2501 - Pack of 10

Seco Turning Insert C Shape Code 6.35 x 0.8 x 15.88mm G Insert Type - M3 Grade TP2501 ± 0.13/± 0.05mm Tolerance CNMG160608-M3,TP2501 - Pack of 10

Seco Turning Insert C Shape Code 6.35 x 1.6 x 15.88mm G Insert Type - M3 Grade TP2501 ± 0.13/± 0.05mm Tolerance CNMG160616-M3,TP2501 - Pack of 10

Seco Turning Insert C Shape Code 6.35 x 0.8 x 19.05mm G Insert Type - M3 Grade TP2501 ± 0.13/± 0.05mm Tolerance CNMG190608-M3,TP2501 - Pack of 10

Seco Turning Insert C Shape Code 6.35 x 1.2 x 19.05mm G Insert Type - M3 Grade TP2501 ± 0.13/± 0.05mm Tolerance CNMG190612-M3,TP2501 - Pack of 10

Seco Turning Insert C Shape Code 6.35 x 1.6 x 19.05mm G Insert Type - M3 Grade TP2501 ± 0.13/± 0.05mm Tolerance CNMG190616-M3,TP2501 - Pack of 10

Description +

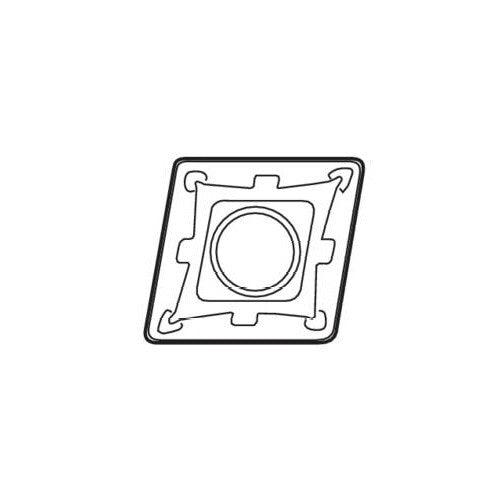

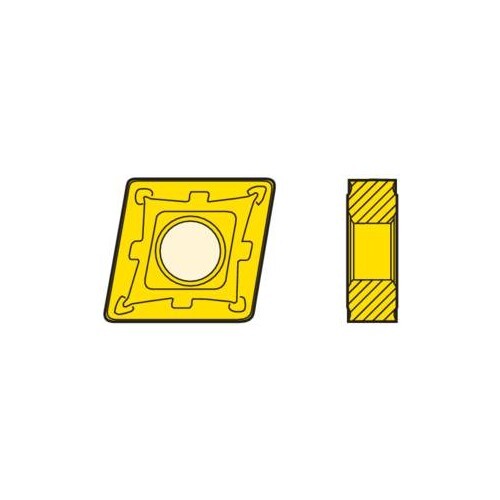

Turning Insert CNMG Insert Style - M3 Grade TP2501

C shape code.
G insert type, with hole and chip breaker on both faces.
TP2501 insert grade.

TP2501 Insert Grade

Duratomic grade.
Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M3 Chipbreaker Programme

First choice for medium-rough machining and also the most versatile Seco chipbreaker.
In most cases, it is the only chipbreaker needed.
It offers the best useful life and best chip breaking in a wide range of cutting data and workpiece materials.
Suitable for precision forged and cast workpieces (NNS or Near Net Shape workpieces) as regards both chip control and edge strength.
Indicative machining range: f = 0,15-0,50 mm/rev, ap = 0,5-5,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Turning Insert CNMG Insert Style - M3 Grade TP2501

SKU: A0117654

Type: Turning Insert

$254.22

Inc. GST

Buy It Now

Available

The Turning Insert CNMG Insert Style by SECO is a Turning Insert in Ti(C,N) + Al2O3 + Used Edge Detection (Chrome). It offers 10pcs and is suitable for precision forged and cast workpieces (NNS or Near Net Shape workpieces).
