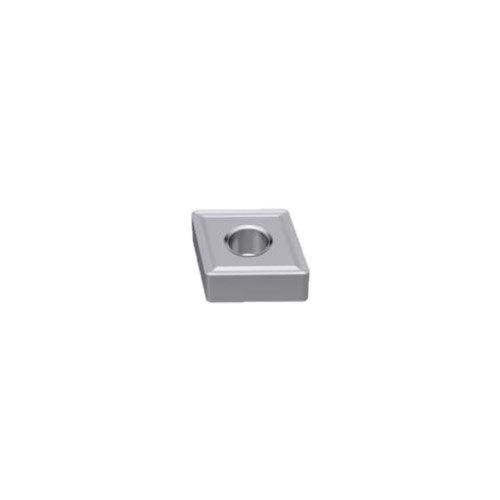

Seco CNMG120408-M4 TK0501 Turning Insert
Available
Genuine Seco 80° rhombic (diamond) turning insert, Grade TK0501 with M4 chipbreaker.
Key Specifications
| Grade | TK0501 |
|---|---|
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | M4 |
| Insert Details | C shape code. G insert type, with hole and chip breaker on both faces. TK0501 insert grade. |
About Grade TK0501
Duratomic® grade. An extremely wear-resistant optimized grade choice for machining of grey cast iron and easier ductile cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the M4 Chipbreaker
Chipbreaker intended for cast iron. A positive rake angle with a narrow T-land gives low cutting forces. First choice for cast iron machining at high speeds. Indicative machining range: f = 0,1-0,7 mm/rev, ap = 0,2-0,7 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
CNMG120408-M4 TK0501
Model Number: 03064452
-
CNMG120412-M4 TK0501
Model Number: 03064455
