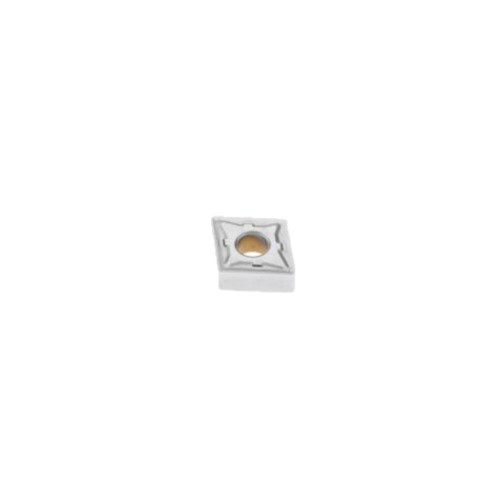

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - M5 Grade TK1501 ± 0.13/± 0.05mm Tolerance CNMG120408-M5,TK1501 10pcs

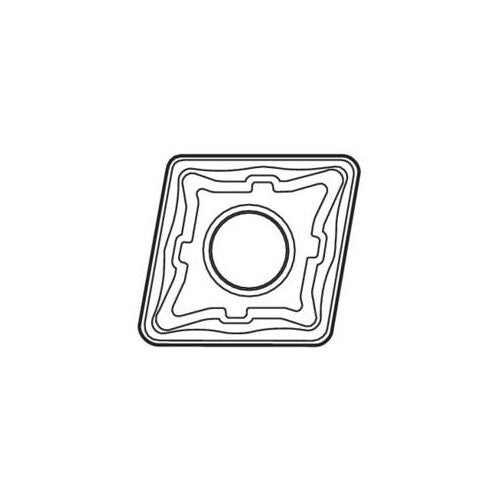

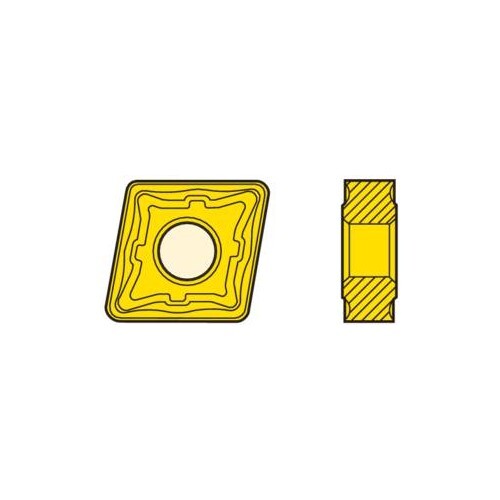

Turning Insert CNMG Insert Style - M5 Grade TK1501 0.8mm Corner Radius (RE)

• C shape code.
• G insert type, with hole and chip breaker on both faces.
• TK1501 insert grade.
• 0.8mm corner radius (RE).

TK1501 Insert Grade

• Duratomic® grade.
• A highly wear-resistant grade for cast irons in general as well as in steels.
• The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M5 Chipbreaker Programme

• The choice for roughing by means of double-sided inserts.
• Intended for demanding operations at high feed rates in steel.
• Stainless steel and cast iron.
• Combines high edge strength with comparatively low cutting forces.
• Indicative machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
