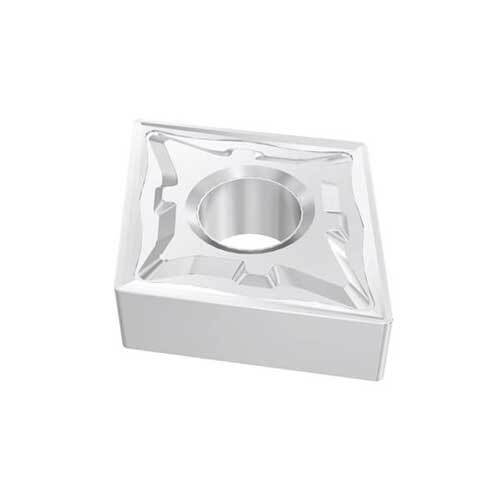

Turning Insert CNMG Insert Style - M5 Grade TM1501: CNMG120408-M5 TM1501

SKU: A0158286 | Model: 03275992

Designation CNMG120408-M5 TM1501. Turning Insert CNMG Insert Style - M5 Grade TM1501

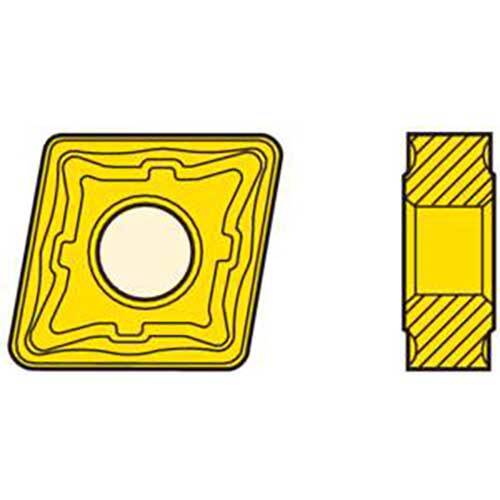

C shape code.

G insert type, with hole and chip breaker on both faces.

TM1501 Insert Grade

Duratomic® grade.

The highly resistant and optimized grade for many continuous cuts in stainless steel turning applications.

Complements in mixes of steel and stainless steel turning.

Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M5 Chipbreaker Programme

The choice for roughing by means of double-sided inserts.

Intended for demanding operations at high feed rates in steel. stainless steel and cast iron.

Combines high edge strength with comparatively low cutting forces.

Recommended machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.

(f = 0.012-0.028 in/rev,ap = 0.060-0.280 inch).

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.

Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.

to boost the productivity and tool life in your turning applications.

Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
