Seco CNMG120404-M5 TP3501 Turning Insert
Available

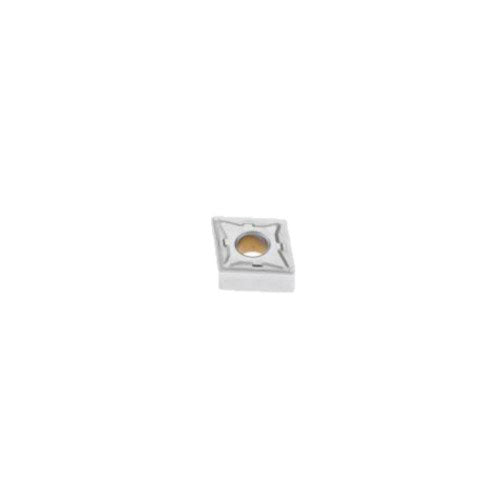

Genuine Seco 80° rhombic (diamond) turning insert, Grade TP3501 with M5 chipbreaker.
Key Specifications
| Grade | TP3501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | M5 |
| Insert Details | C shape code. G insert type, with hole and chip breaker on both faces. TP3501 insert grade. |
About Grade TP3501
Carbide CVD. Duratomic® grade. Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steel especially including interrupted cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the M5 Chipbreaker
The choice for roughing by means of double-sided inserts. Intended for demanding operations at high feed rates in steel. Stainless steel and cast iron. Combines high edge strength with comparatively low cutting forces. Indicative machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
CNMG120404-M5 TP3501
Model Number: 03093915
-
CNMG120408-M5 TP3501
Model Number: 03093916
-
CNMG120412-M5 TP3501
Model Number: 03093917
-
CNMG120416-M5 TP3501
Model Number: 03096310
-
CNMG160608-M5 TP3501
Model Number: 03093918
-
CNMG160612-M5 TP3501
Model Number: 03093919
-
CNMG160616-M5 TP3501
Model Number: 03093920
-
CNMG190608-M5 TP3501
Model Number: 03093921
-
CNMG190612-M5 TP3501
Model Number: 03093922
-
CNMG190616-M5 TP3501
Model Number: 03093923
