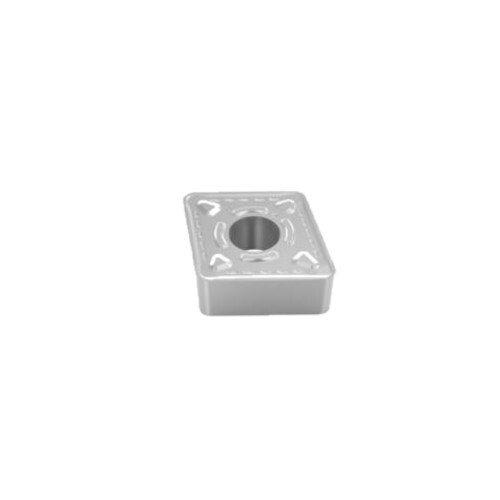

Seco CNMG160612-M6 TK1501 Turning Insert
The price shown is for the pack.
Available
Genuine Seco 80° rhombic (diamond) turning insert, Grade TK1501 with M6 chipbreaker. This is the CNMG insert style in grade TK1501 (Carbide CVD), with the M6 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 4 options.
Key Specifications
| Grade | TK1501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | M6 |

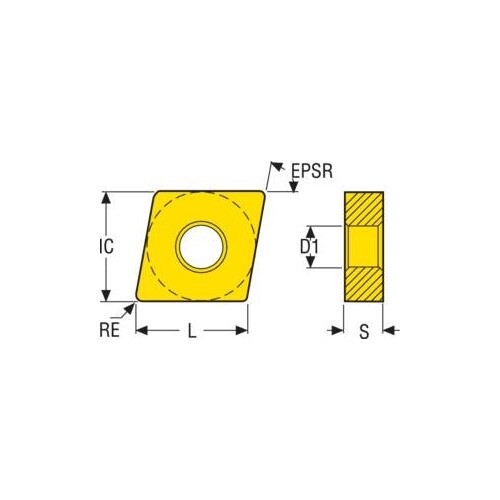

| Insert Details | C shape code. G insert type, with hole and chip breaker on both faces. TK1501 insert grade. 6.35mm insert thickness (S). |
About Grade TK1501
Carbide CVD. Duratomic® grade. A highly wear-resistant grade for cast irons in general as well as in steels. The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the M6 Chipbreaker

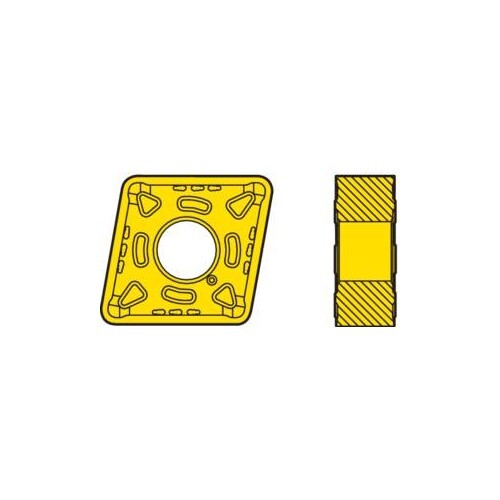

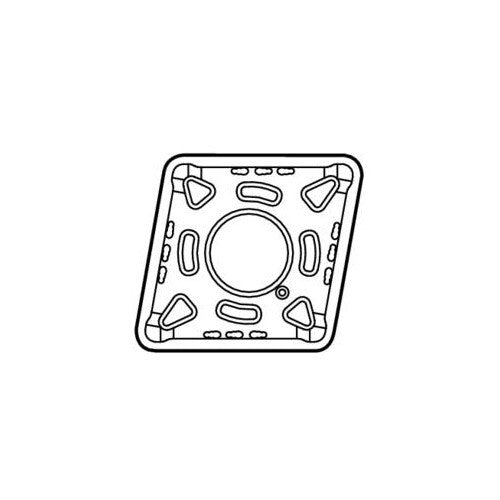

Strong double-sided chipbreaker, intended for semi-roughing and roughing of steel. A well-balanced design combining excellent chip control and relatively low cutting forces which provides reliable cutting action in both continuous as well as interrupted cuts. Well suited also for machining of ferritic and martensitic stainless steels. Indicative machining range: f = 0,2-0,8 mm/rev, ap = 1,0-7,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert CNMG Insert Style - M6 Grade TK1501 6.35mm (S): CNMG160612-M6 TK1501
SKU: A0116991 | Model: 03062606
Seco Turning Insert C Shape Code 6.35 x 1.2 x 15.88mm G Insert Type - M6 Grade TK1501 ± 0.13/± 0.05mm Tolerance CNMG160612-M6,TK1501 10pcs
Turning Insert CNMG Insert Style - M6 Grade TK1501 6.35mm Insert Thickness (S)
C shape code.
G insert type, with hole and chip breaker on both faces.
TK1501 insert grade.
6.35mm insert thickness (S).
TK1501 Insert Grade
Duratomic® grade.
A highly wear-resistant grade for cast irons in general as well as in steels.
The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
M6 Chipbreaker Programme
Strong double-sided chipbreaker, intended for semi-roughing and roughing of steel.
A well-balanced design combining excellent chip control and relatively low cutting forces which provides reliable cutting action in both continuous as well as interrupted cuts.
Well suited also for machining of ferritic and martensitic stainless steels.
Indicative machining range: f = 0,2-0,8 mm/rev, ap = 1,0-7,0 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
