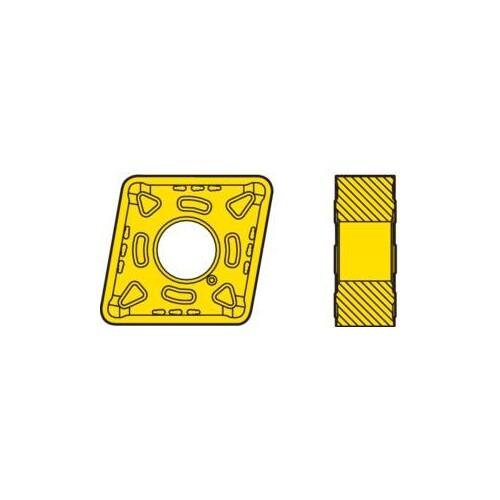

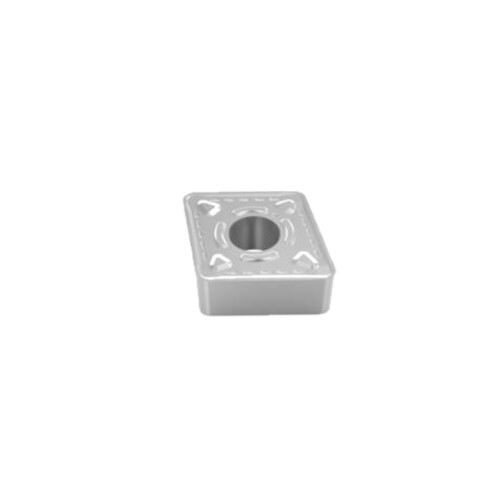

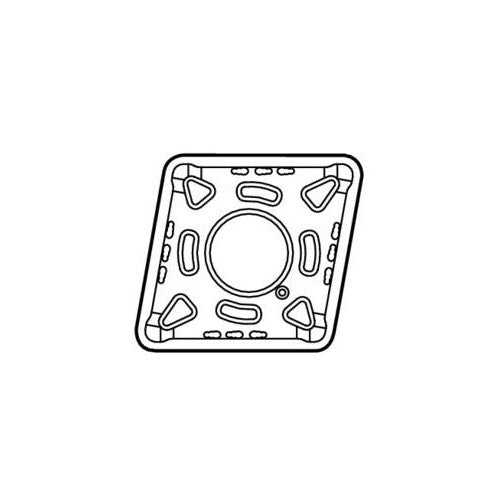

Seco Turning Insert C Shape Code 6.35 x 1.19 x 15.88mm G Insert Type - M6 Grade TP0501 ± 0.13/± 0.05mm Tolerance CNMG160612-M6,TP0501 10pcs

Turning Insert CNMG Insert Style - M6 Grade TP0501 6.35mm Insert Thickness(S)

• C shape code.
• G insert type, with hole and chip breaker on both faces.
• TP0501 insert grade.
• 6.35mm insert thickness (S).

TP0501 Insert Grade

• Duratomic® grade.
• A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M6 Chipbreaker Programme

• Strong double-sided chipbreaker, intended for semi-roughing and roughing of steel.
• A well-balanced design combining excellent chip control and relatively low cutting forces which provides reliable cutting action in both continuous as well as interrupted cuts.
• Well suited also for machining of ferritic and martensitic stainless steels.
• Indicative machining range: f = 0,2-0,8 mm/rev, ap = 1,0-7,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
