Seco CNMG120404-MF1 CP200 Turning Insert
The price shown is for the pack.
Available

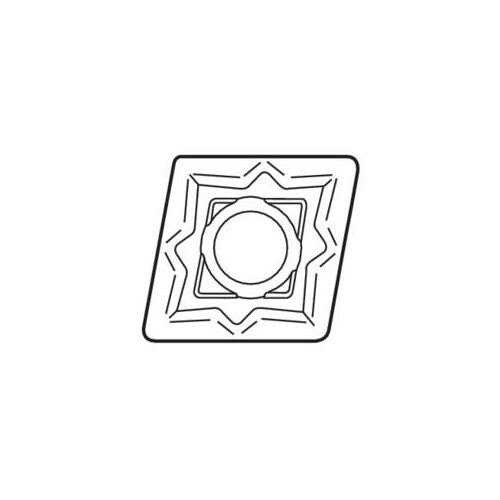

Genuine Seco 80° rhombic (diamond) turning insert, Grade CP200 with MF1 chipbreaker. This is the CNMG insert style in grade CP200 (Carbide PVD), with the MF1 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 3 options.
Key Specifications
| Grade | CP200 |
|---|---|
| Substrate / Coating | Carbide PVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | MF1 |
| Insert Details | C shape code. G insert type, with hole and chip breaker on both faces. CP200 insert grade. |
About Grade CP200
Carbide PVD. Hard micrograin grade principally intended for finishing in superalloys and titanium. It also works well in stainless steel. (Ti, Al) N + TiN.
About the MF1 Chipbreaker
Chipbreaker intended for machining stainless steel, superalloys and titanium alloys. Type ..GG insert has a sharp, precision ground edge. Type ..MG insert has a lightly honed cutting edge for increased strength. MF1 is intended for use in semi-finishing and finishing applications. Indicative machining range: f = 0,08–0,30 mm/rev, ap = 0,2–3,5 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert CNMG Insert Style - MF1 Grade CP200: CNMG120404-MF1 CP200
SKU: A0116767 | Model: 00045365

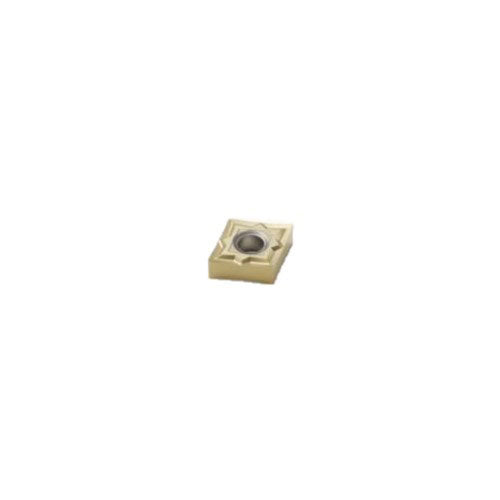

Seco Turning Insert C Shape Code 4.76 x 0.4 x 12.7mm G Insert Type - MF1 Grade CP200 ± 0.13/± 0.05mm Tolerance CNMG120404-MF1,CP200 10pcs
Turning Insert CNMG Insert Style - MF1 Grade CP200
C shape code.
G insert type, with hole and chip breaker on both faces.
CP200 insert grade.
CP200 Insert Grade
Hard micrograin grade principally intended for finishing in superalloys and titanium.
It also works well in stainless steel.
(Ti, Al) N + TiN.
MF1 Chipbreaker Programme
Chipbreaker intended for machining stainless steel, superalloys and titanium alloys.
Type ..GG insert has a sharp, precision ground edge.
Type ..MG insert has a lightly honed cutting edge for increased strength.
MF1 is intended for use in semi-finishing and finishing applications.
Indicative machining range: f = 0,08–0,30 mm/rev, ap = 0,2–3,5 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
