Turning Insert CNMG Insert Style - MF1 Grade TM1501: CNMG120404-MF1 TM1501

SKU: A0158299 | Model: 03275986

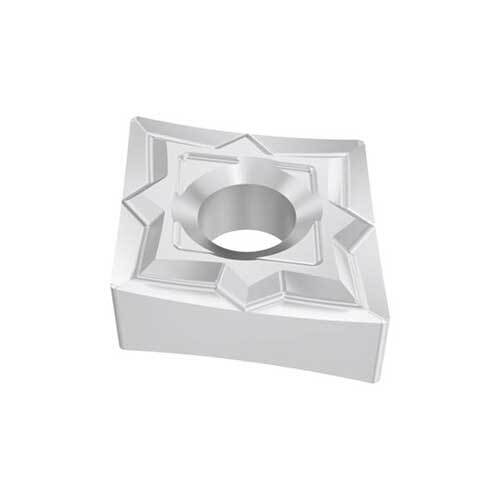

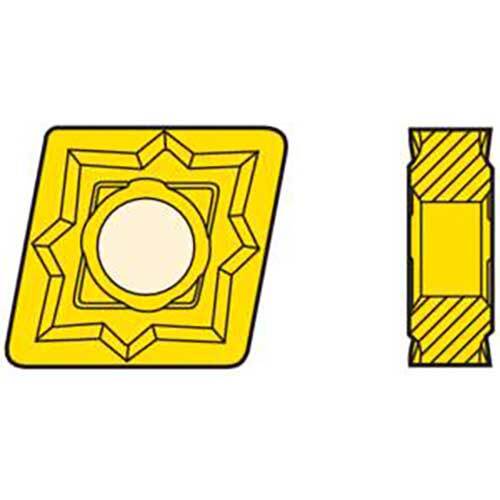

Designation CNMG120404-MF1 TM1501. Turning Insert CNMG Insert Style - MF1 Grade TM1501

C shape code.

G insert type, with hole and chip breaker on both faces.

TM1501 Insert Grade

Duratomic® grade.

The highly resistant and optimized grade for many continuous cuts in stainless steel turning applications.

Complements in mixes of steel and stainless steel turning.

Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MF1 Chipbreaker Programme

Chipbreaker is intended for machining stainless steel, superalloys, and titanium alloys.

Type ..GG insert has a sharp, precision ground edge.

Type ..MG insert has a lightly honed cutting edge for increased strength.

MF1 is intended for use in semi-finishing and finishing applications.

Indicative machining range: f = 0,08–0,30 mm/rev, ap = 0,2–3,5 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.

Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.

to boost the productivity and tool life in your turning applications.

Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
