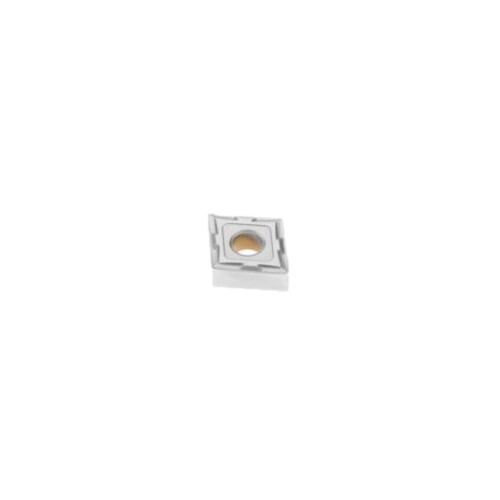

Seco CNMG120404-MF2 TK1501 Turning Insert
Available

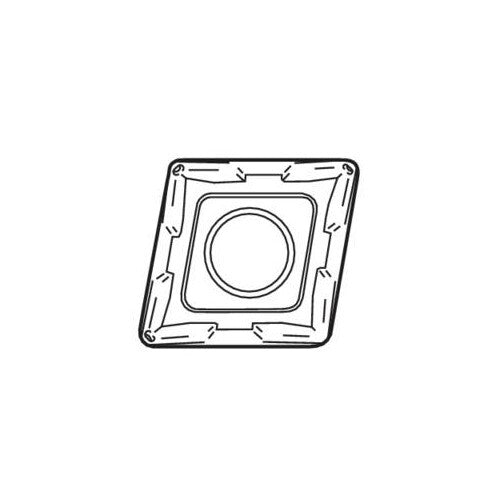

Genuine Seco 80° rhombic (diamond) turning insert, Grade TK1501 with MF2 chipbreaker.
Key Specifications
| Grade | TK1501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | MF2 |
| Insert Details | C shape code. G insert type, with hole and chip breaker on both faces. TK1501 insert grade. |
About Grade TK1501
Carbide CVD. Duratomic® grade. A highly wear-resistant grade for cast irons in general as well as in steels. The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the MF2 Chipbreaker
First choice for finishing with negative inserts. Suitable for chip control at depths of cut down to 0,25 mm, provided that the feed rate is in excess of 0,25 mm/rev. Good capacity for medium rough machining. Indicative machining range: f = 0,10–0,40 mm/rev, ap = 0,2–3,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
CNMG120404-MF2 TK1501
Model Number: 03064476
-
CNMG120408-MF2 TK1501
Model Number: 03064014
