Seco CNMG120408-MF3 TP40 Turning Insert
Available

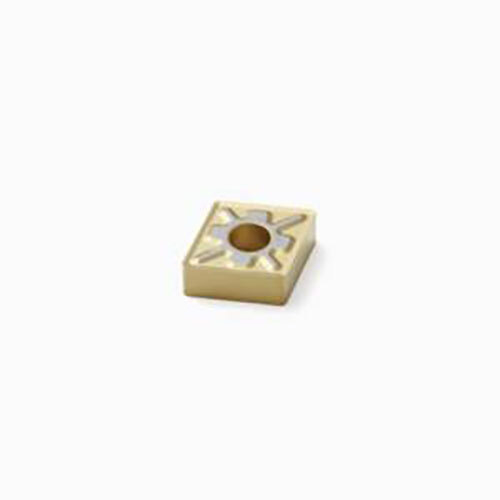

Genuine Seco 80° rhombic (diamond) turning insert, Grade TP40 with MF3 chipbreaker.
Key Specifications
| Grade | TP40 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | MF3 |

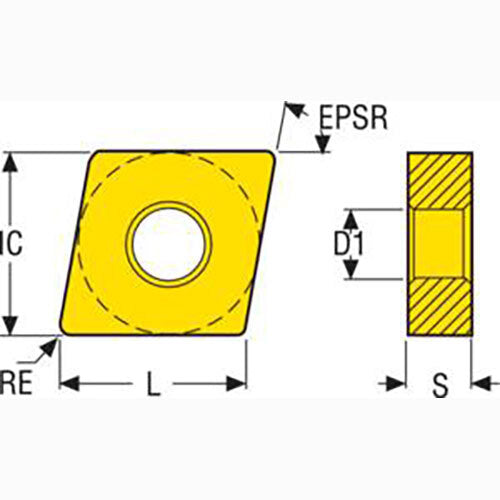

| Insert Details | C shape code. G insert type, with hole and chip breaker on both faces. TP40 insert grade. |
About Grade TP40
Carbide CVD. Universal grade for a extremely secure performance in the most demanding application from steels, stainless steels to superalloys especially in castings and forgings. TiC/Ti(C,N) + TiN.

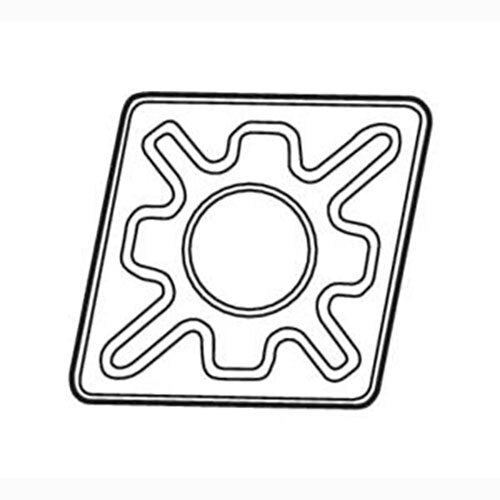

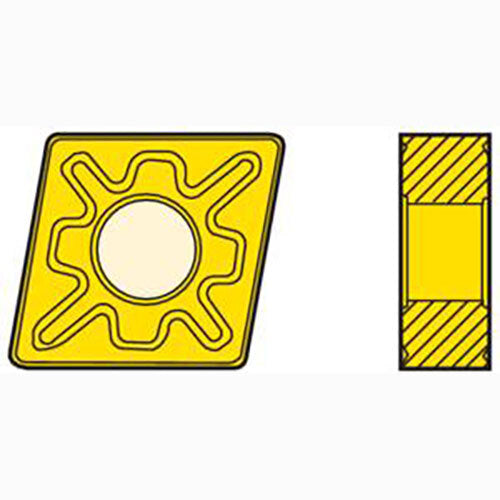

About the MF3 Chipbreaker
Chipbreaker with a positive cutting rake angle intended for moderately difficult stainless steel. The MF3 is also intended for light roughing in relatively soft, “tacky” steel and difficult to machine stainless steel if the depth of cut is limited. MF3 can also be used for finishing of cast iron. Indicative machining range: f = 0,2–0,4 mm/rev, ap = 1–4 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
CNMG120408-MF3 TP40
Model Number: 74030598
-
CNMG120412-MF3 TP40
Model Number: 74030600
