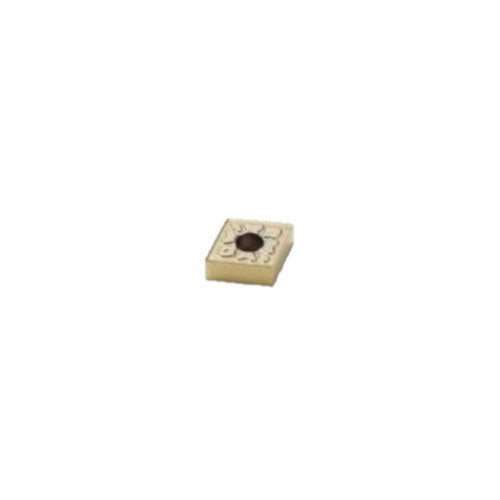

Seco CNMG120404-MF4 CP500 Turning Insert
Available

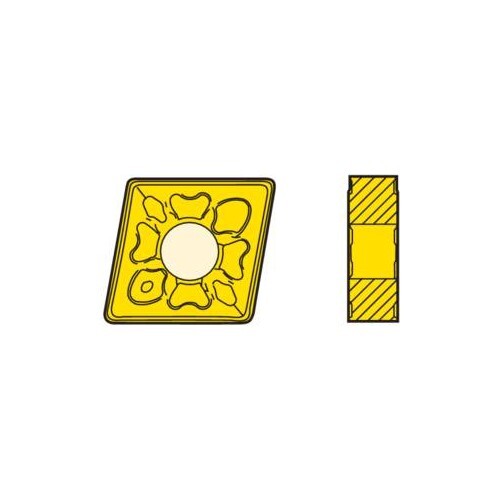

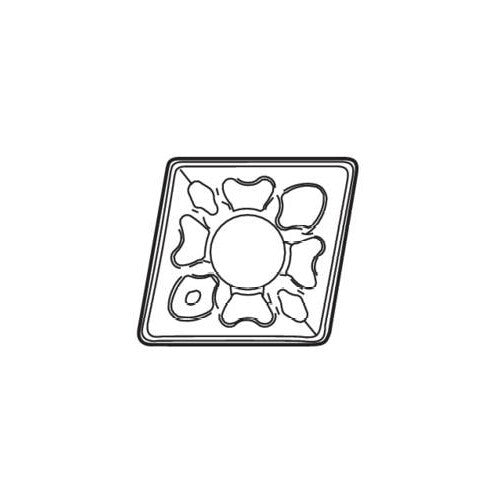

Genuine Seco 80° rhombic (diamond) turning insert, Grade CP500 with MF4 chipbreaker.
Key Specifications
| Grade | CP500 |
|---|---|
| Substrate / Coating | Carbide PVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | MF4 |
| Insert Details | C shape code. G insert type, with hole and chip breaker on both faces. CP500 insert grade. |
About Grade CP500
Carbide PVD. Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys. Especially suitable in intermittent cuts. (Ti, Al)N + TiN
About the MF4 Chipbreaker
Chipbreaker intended for medium/finishing of stainless steel, very open and highly positive geometry. Indicative machining range: f = 0,15–0,50 mm/rev, ap = 0,5–4,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
CNMG120404-MF4 CP500
Model Number: 02573895
-
CNMG120408-MF4 CP500
Model Number: 02573896
