Turning Insert CNMG Insert Style - MF4 Grade TM15011

Turning Insert CNMG Insert Style - MF4 Grade TM15012

Turning Insert CNMG Insert Style - MF4 Grade TM15013

Seco Turning Insert C Shape Code 6.35 x 1.2 x 19.05mm G Insert Type - MF4 Grade TM1501 ± 0.13/± 0.1mm CNMG190612-MF4 Pack of 10

Seco Turning Insert C Shape Code 6.35 x 1.2 x 15.88mm G Insert Type - MF4 Grade TM1501 ± 0.13/± 0.1mm CNMG160612-MF4 Pack of 10

Seco Turning Insert C Shape Code 6.35 x 0.8 x 15.88mm G Insert Type - MF4 Grade TM1501 ± 0.13/± 0.1mm CNMG160608-MF4 Pack of 10

Seco Turning Insert C Shape Code 4.76 x 1.6 x 12.7mm G Insert Type - MF4 Grade TM1501 ± 0.13/± 0.08mm CNMG120416-MF4 Pack of 10

Seco Turning Insert C Shape Code 4.76 x 1.2 x 12.7mm G Insert Type - MF4 Grade TM1501 ± 0.13/± 0.08mm CNMG120412-MF4 Pack of 10

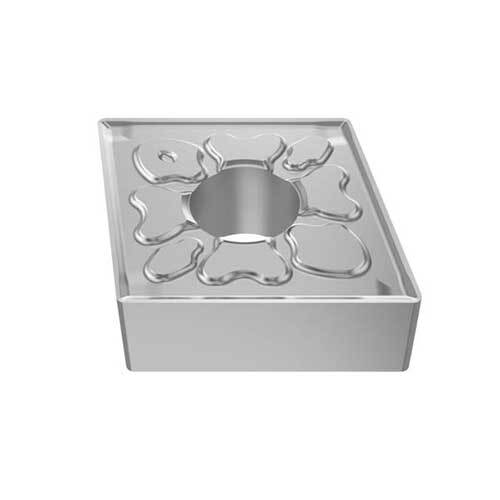

Seco Turning Insert C Shape Code 4.76 x 0.4 x 12.7mm G Insert Type - MF4 Grade TM1501 ± 0.13/± 0.08mm CNMG120404-MF4 Pack of 10

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - MF4 Grade TM1501 ± 0.13/± 0.08mm CNMG120408-MF4 Pack of 10

Description +

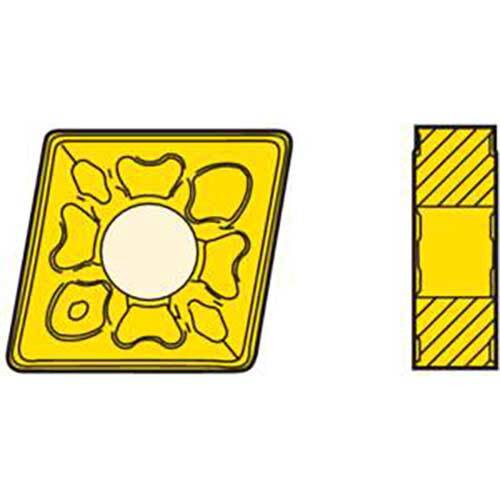

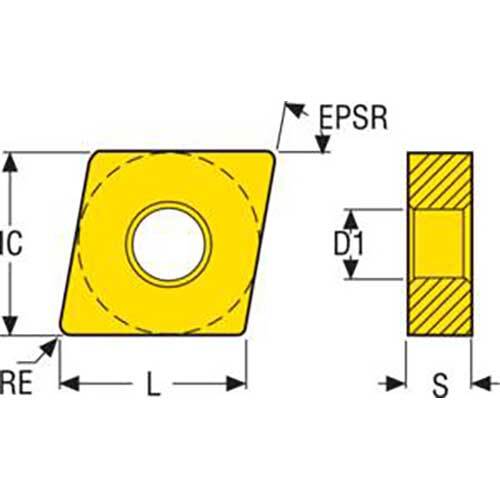

Turning Insert CNMG Insert Style - MF4 Grade TM1501

C shape code.
G insert type, with hole and chip breaker on both faces.

TM1501 Insert Grade

Duratomic® grade.
The highly resistant and optimized grade for many continuous cuts in stainless steel turning applications.
Complements in mixes of steel and stainless steel turning.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MF4 Chipbreaker Programme

Chipbreaker intended for medium/finishing of stainless steel, very open and highly positive geometry.
Indicative machining range: f = 0,15–0,50 mm/rev, ap = 0,5–4,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Turning Insert CNMG Insert Style - MF4 Grade TM1501

SKU: A0158309

Type: Turning Insert

$254.22

Inc. GST

Buy It Now

Available

The Turning Insert CNMG Insert Style by SECO is a Turning Insert with Duratomic® grade. It provides an indicative machining range of f = 0,15–0,50 mm/rev and is suitable for stainless steel turning applications in continuous cuts.
