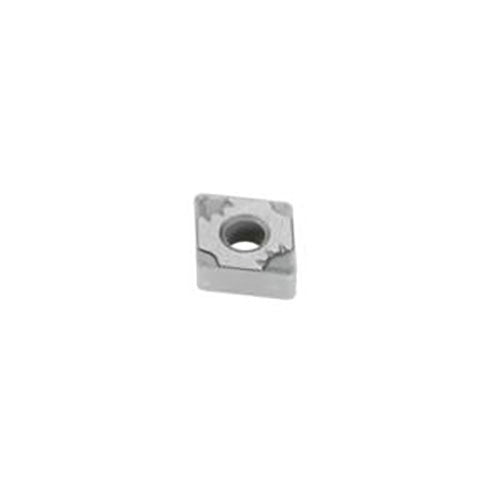

SECO Turning Insert CNMG Insert Style - MF5 Grade TP0501
Available
Genuine Seco 80° rhombic (diamond) turning insert, Grade TP0501 with MF5 chipbreaker.
Key Specifications
| Grade | TP0501 |
|---|---|
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | MF5 |
| Insert Details | C shape code. G insert type, with hole and chip breaker on both faces. TP0501 insert grade. |
About Grade TP0501
Duratomic® grade. A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the MF5 Chipbreaker
Chipbreaker intended for medium finishing of steel and stainless steel at high feeds. Very easy cutting and open geometry. Indicative machining range: f = 0,2–0,8 mm/rev, ap = 0,2–2,7 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
