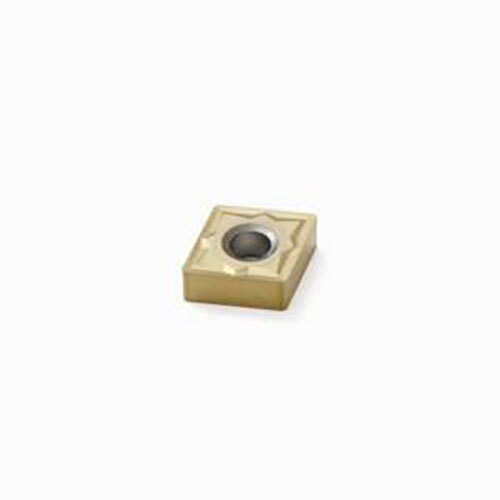

Seco CNMG120408-MR3 TS2000 Turning Insert
Available
Genuine Seco 80° rhombic (diamond) turning insert, Grade TS2000 with MR3 chipbreaker.

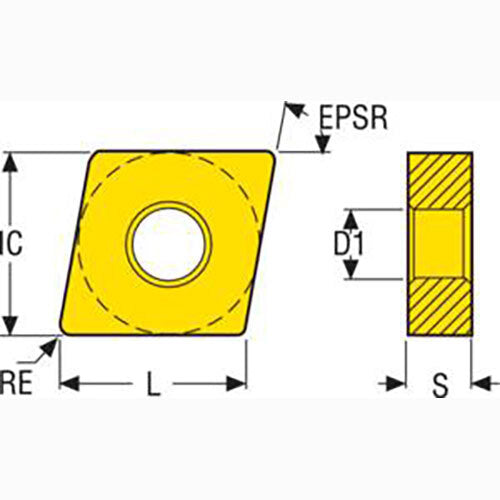

Key Specifications
| Grade | TS2000 |
|---|---|
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | MR3 |

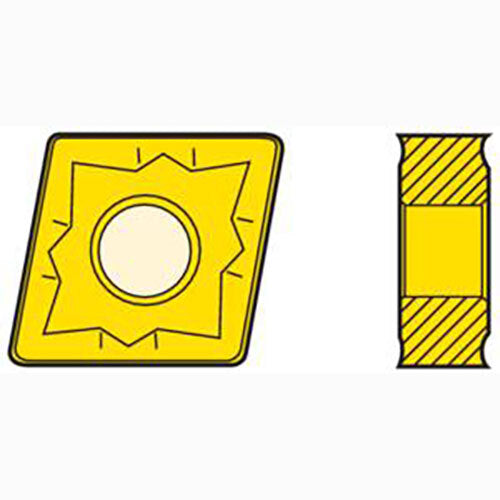

| Insert Details | C shape code. G insert type, with hole and chip breaker on both faces. TS2000 insert grade. |
About Grade TS2000
Hard micrograin wear-resistant grade intended for finishing in superalloys and titanium as well as in many stainless steels. (Ti, Al)N + TiN.

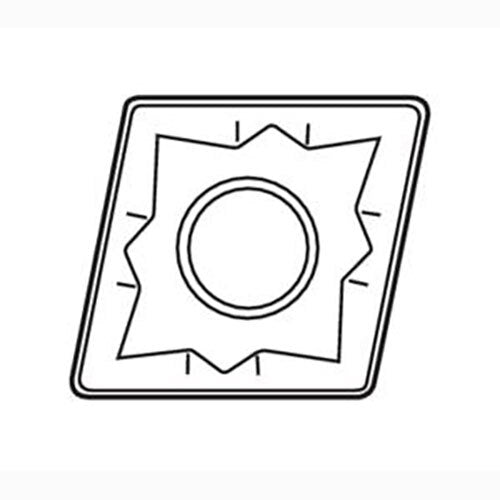

About the MR3 Chipbreaker
Chipbreaker with a positive cutting rake angle that reduces cutting forces and gives a very high edge strength. Intended for medium-rough and rough machining of superalloys, titanium alloys and hardened steel. Indicative machining range: f = 0,2–0,6 mm/rev, ap = 1,5–7,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
CNMG120408-MR3 TS2000
Model Number: 02615897
-
CNMG120412-MR3 TS2000
Model Number: 02615898
