Seco CNMG120408-MR7 TK0501 Turning Insert
Available

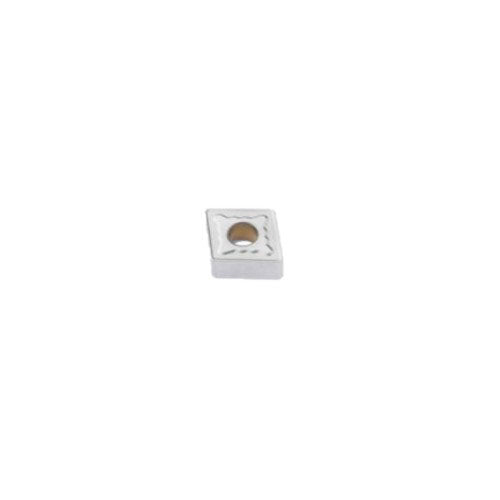

Genuine Seco 80° rhombic (diamond) turning insert, Grade TK0501 with MR7 chipbreaker.
Key Specifications
| Grade | TK0501 |
|---|---|
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | MR7 |
| Insert Details | C shape code. G insert type, with hole and chip breaker on both faces. TK0501 insert grade. |
About Grade TK0501
Duratomic® grade. An extremely wear-resistant optimized grade choice for machining of grey cast iron and easier ductile cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the MR7 Chipbreaker
The strongest chipbreaker for double-sided inserts. The MR7 is suitable for high feed rates and depths of cut that normally require a single-sided insert. The chipbreaker has a wide negative T land, which gives high edge strength. Indicative machining range: f = 0,35–0,90 mm/rev, ap = 1,5–7,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
CNMG120408-MR7 TK0501
Model Number: 03064454
-
CNMG120412-MR7 TK0501
Model Number: 03064457
-
CNMG120416-MR7 TK0501
Model Number: 03062560
-
CNMG160612-MR7 TK0501
Model Number: 03062563
