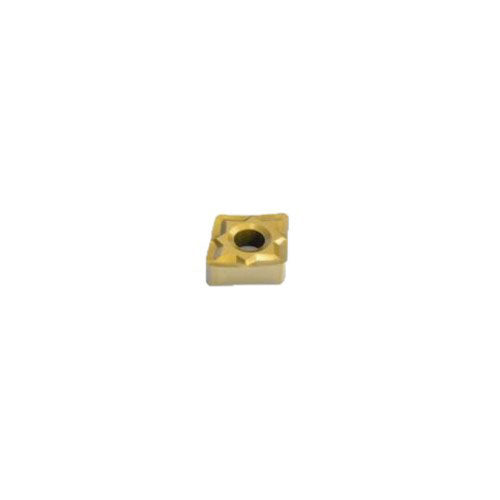

Turning Insert CNMG Insert Style - W-MF1 Grade CP500
The price shown is for the pack.
Available
Genuine Seco 80° rhombic (diamond) turning insert, Grade CP500. This is the CNMG insert style in grade CP500 (Carbide PVD). It is used on CNC and manual lathes for turning. This page lists 4 options.
Key Specifications
| Grade | CP500 |
|---|---|
| Substrate / Coating | Carbide PVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Insert Details | C shape code. G insert type, with hole and chipbreaker on both faces. CP500 insert grade. |
About Grade CP500
Carbide PVD. Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys. Especially suitable in intermittent cuts. (Ti, Al)N + TiN.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert CNMG Insert Style - W-MF1 Grade CP500
SKU: A0116812 | Model: 02887234
Seco Turning Insert C Shape Code 4.76 x 0.79 x 12.7mm G Insert Type - W-MF1 Grade CP500 ± 0.13/± 0.05mm Tolerance CNMG120408W-MF1,CP500 10pcs
Turning Insert CNMG Insert Style - W-MF1 Grade CP500

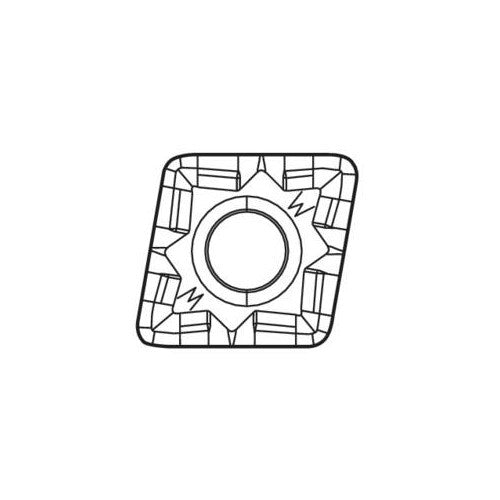

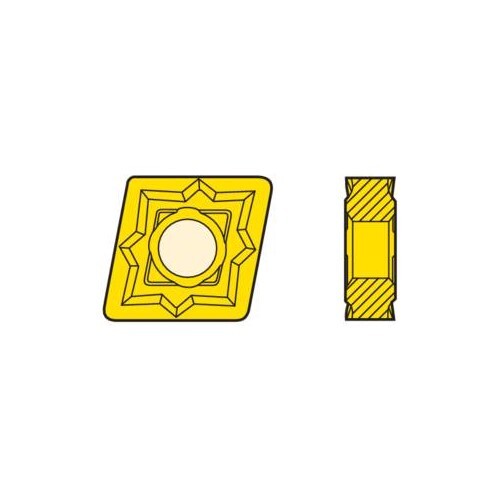

C shape code.
G insert type, with hole and chipbreaker on both faces.
CP500 insert grade.
CP500 Insert Grade
Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys. Especially suitable in intermittent cuts.
(Ti, Al)N + TiN.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
To boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
