Turning Insert CNMG Insert Style - W-MF4 | AIMS Industrial

***Illustrations shown may vary from actual product***

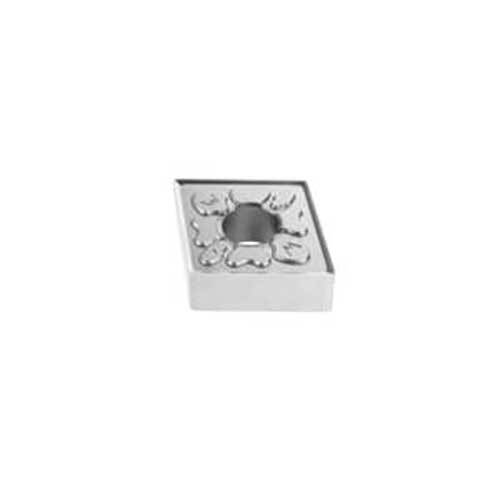

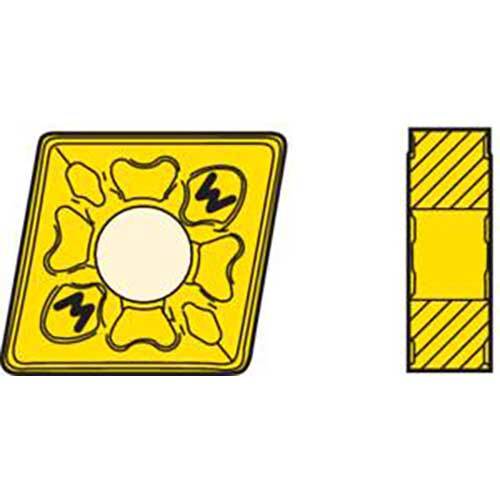

Turning Insert CNMG Insert Style - W-MF4 Grade TM1501

• C shape code.
• G insert type, with hole and chip breaker on both faces.

TM1501 Insert Grade

• Duratomic® grade.
• The highly resistant and optimized grade for many continuous cuts in stainless steel turning applications.
• Complements in mixes of steel and stainless steel turning.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

W-MF4 Chipbreaker Prog.ramme

• Easy cutting action chipbreaker for high feed machining of stainless steel.
• Provides a good surface finish in finishing operations and high feed wiper productivity in medium-roughing machining.
• Indicative machining range: f = 0,05-0,90 mm/rev, ap= 0,2 - 6,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
