Turning Insert CNMG Insert Style - W-MF4 Grade TM2501: CNMG120404W-MF4 TM2501

SKU: A0158327 | Model: 03277073

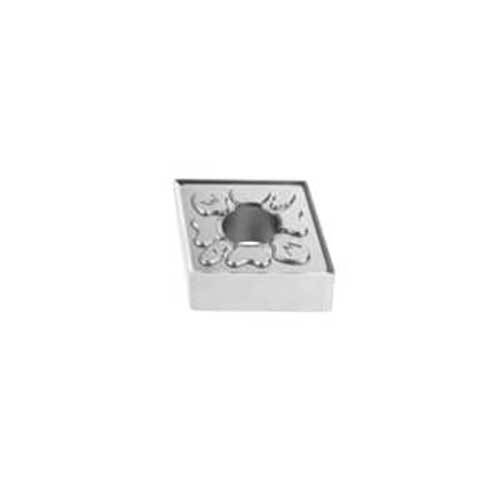

Designation CNMG120404W-MF4 TM2501. Turning Insert CNMG Insert Style - W-MF4 Grade TM2501

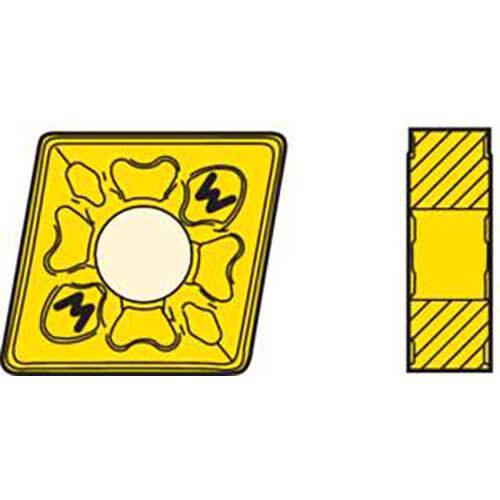

C shape code.

G insert type, with hole and chip breaker on both faces.

TM2501 Insert Grade

Duratomic® grade.

A highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness.

First choice in austenitic stainless steel turning. Complements in steel turning with heavy intermittent cuts.

Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

W-MF4 Chipbreaker Prog.ramme

Easy cutting action chipbreaker for high feed machining of stainless steel.

Provides a good surface finish in finishing operations and high feed wiper productivity in medium-roughing machining.

Indicative machining range: f = 0,05-0,90 mm/rev, ap= 0,2 - 6,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.

Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.

to boost the productivity and tool life in your turning applications.

Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
