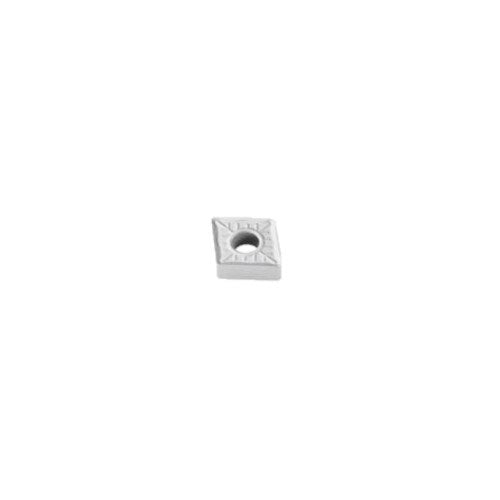

Seco Turning Insert C Shape Code 6.35 x 2.4 x 15.88mm M Insert Type - R7 Grade TP0501 ± 0.13/± 0.05mm Tolerance CNMM160624-R7,TP0501 10pcs

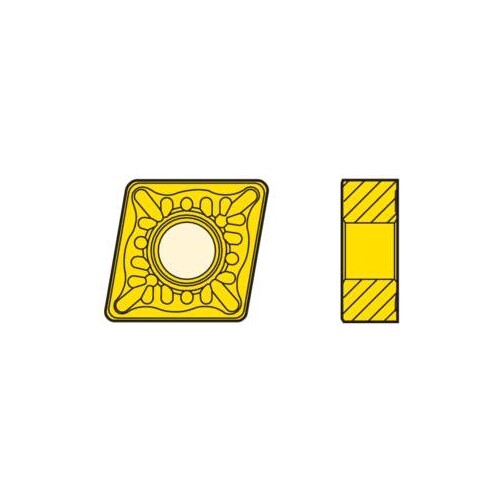

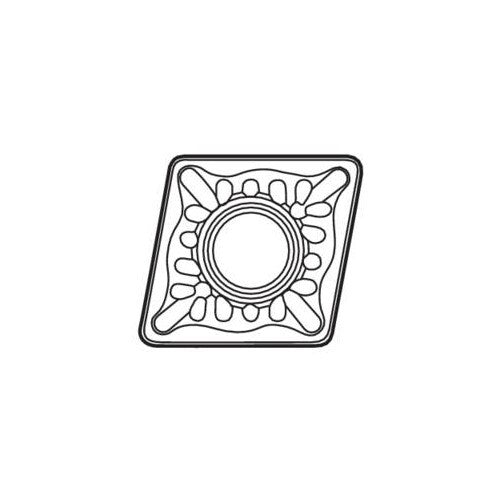

Turning Insert CNMM Insert Style - R7 Grade TP0501

• C shape code.
• M insert type, with hole and chipbreaker on one face only.
• TP0501 insert grade.

TP0501 Insert Grade

• Duratomic® grade.
• A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

R7 Chipbreaker Programme

• A strong but easy-cutting chipbreaker for single-sided inserts.
• The R7 is well suited for intermittent machining of both stainless and ordinary carbon steel.
• Indicative machining range: f = 0,4–1,6 mm/rev, ap = 3–18 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• To boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
