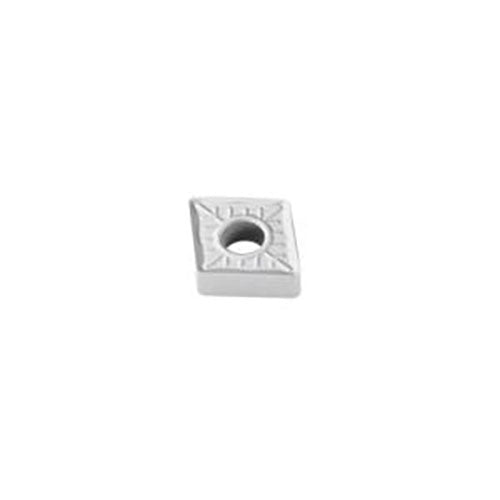

Seco Turning Insert C Shape Code 6.35 x 1.6 x 15.88mm M Insert Type - R7 Grade TP2501 ± 0.13/± 0.05mm Tolerance CNMM160616-R7,TP2501 10pcs

Turning Insert CNMM Insert Style - R7 Grade TP2501

• C shape code.
• M insert type, with hole and chipbreaker on one face only.
• TP2501 insert grade.

TP2501 Insert Grade

• Duratomic® grade.
• Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

R7 Chipbreaker Programme

• A strong but easy-cutting chipbreaker for single-sided inserts.
• The R7 is well suited for intermittent machining of both stainless and ordinary carbon steel.
• Indicative machining range: f = 0,4–1,6 mm/rev, ap = 3–18 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• To boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
