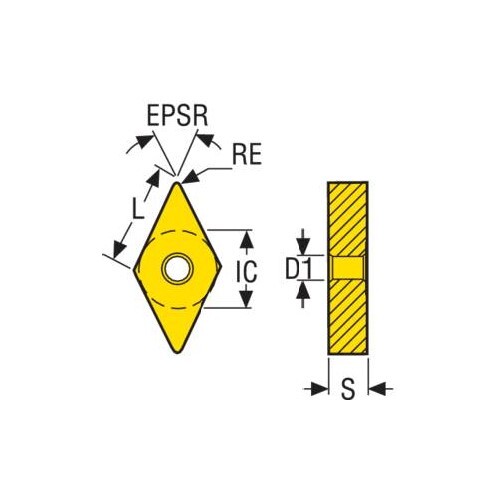

Seco Turning Insert D Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - M3 Grade TP0501 ± 0.13/± 0.05mm Tolerance DNMG150408-M3,TP0501 10pcs

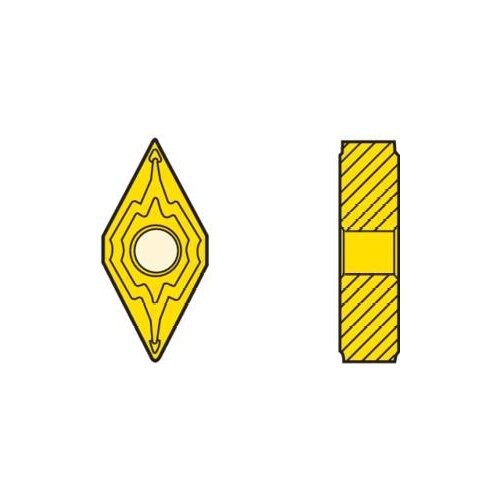

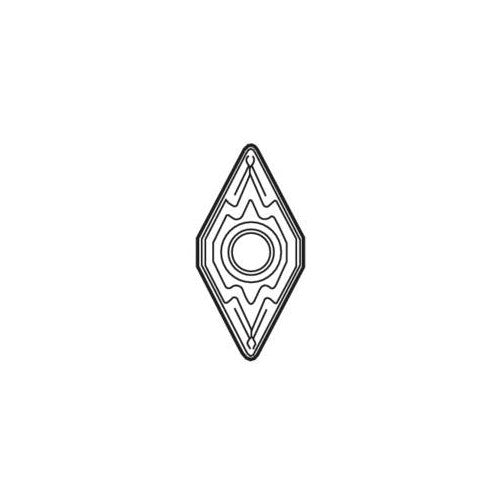

Turning Insert DNMG Insert Style - M3 Grade TP0501
- D shape code.
- G insert type, with hole and chip breaker on both faces.
- TP0501 insert grade.
TP0501 Insert Grade
- Duratomic® grade.
- A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons.
- Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
M3 Chipbreaker Programme
- First choice for medium-rough machining and also the most versatile Seco chipbreaker.
- In most cases, it is the only chipbreaker needed.
- It offers the best useful life and best chip breaking in a wide range of cutting data and workpiece materials.
- Suitable for precision forged and cast workpieces (NNS or Near Net Shape workpieces) as regards both chip control and edge strength.
- Indicative machining range: f = 0,15-0,50 mm/rev, ap = 0,5-5,0 mm.
About Seco Turning Insert
- Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
- Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
- to boost the productivity and tool life in your turning applications.
- Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
