Seco DNMG150404-M3 TP2501 Turning Insert
Available
This is the Turning Insert DNMG Insert Style - M3 Grade TP2501 4.76mm (S).

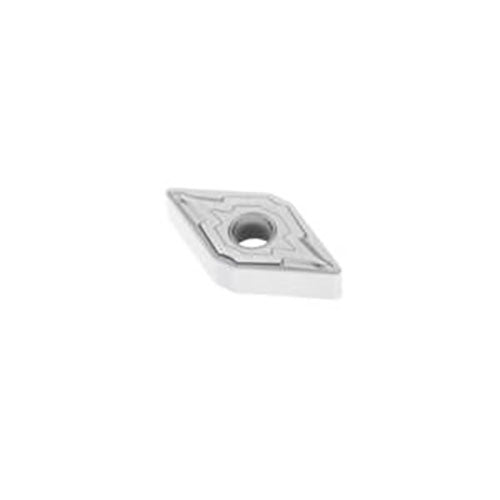

Genuine Seco 55° rhombic (diamond) turning insert, Grade TP2501 with M3 chipbreaker.
Key Specifications
| Grade | TP2501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 55° rhombic (diamond) (ISO shape code D) |
| Chipbreaker | M3 |
| Insert Details | D shape code. G insert type, with hole and chip breaker on both faces. TP2501 insert grade. 4.76mm insert thickness (S). |
About Grade TP2501
Carbide CVD. Duratomic® grade. Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the M3 Chipbreaker
First choice for medium-rough machining and also the most versatile Seco chipbreaker. In most cases, it is the only chipbreaker needed. It offers the best useful life and best chip breaking in a wide range of cutting data and workpiece materials. Suitable for precision forged and cast workpieces (NNS or Near Net Shape workpieces) as regards both chip control and edge strength. Indicative machining range: f = 0,15-0,50 mm/rev, ap = 0,5-5,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Product details
| Model | 02959937 |
|---|---|
| Corner Radius (RE) mm | 0.4 |
| Insert Included Angle (epsr) Deg | 55.0 deg |
| Chipbreaker Programme | M3 |
| Theoretical Cutting Edge Length (L) mm | 15.5 |
| Designation | DNMG150404-M3 TP2501 |
| Inscribed Circle Diameter (IC) mm | 12.7 |
| Fixing Hole Diameter (d1) Mm | 5.2 |
| Insert Thickness (S) mm | 4.76 |
| Insert Shape Code (SC) | D |
| Clearance Angle Major (an) Deg | 0.0 deg |
| Grade | TP2501 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert DNMG Insert Style - M3 Grade TP2501 4.76mm (S): DNMG150404-M3 TP2501
SKU: A0117675 | Model: 02959937
Seco Turning Insert D Shape Code 4.76 x 0.4 x 12.7mm G Insert Type - M3 Grade TP2501 ± 0.13/± 0.05mm Tolerance DNMG150404-M3,TP2501 10pcs
Turning Insert DNMG Insert Style - M3 Grade TP2501 4.76mm Insert Thickness (S)
D shape code.
G insert type, with hole and chip breaker on both faces.
TP2501 insert grade.
4.76mm insert thickness (S).
TP2501 Insert Grade
Duratomic® grade.
Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
M3 Chipbreaker Programme
First choice for medium-rough machining and also the most versatile Seco chipbreaker.
In most cases, it is the only chipbreaker needed.
It offers the best useful life and best chip breaking in a wide range of cutting data and workpiece materials.
Suitable for precision forged and cast workpieces (NNS or Near Net Shape workpieces) as regards both chip control and edge strength.
Indicative machining range: f = 0,15-0,50 mm/rev, ap = 0,5-5,0 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
