Seco Turning Insert D Shape Code 6.35 x | AIMS Industrial

***Illustrations shown may vary from actual product***

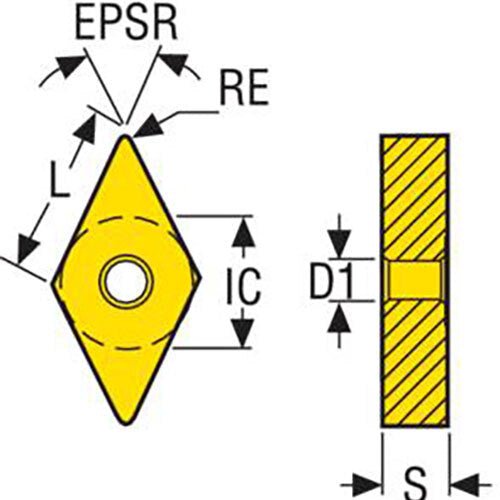

Seco Turning Insert D Shape Code 4.76 x 0.4 x 12.7mm G Insert Type - M5 Grade TP3501 ± 0.13/± 0.05mm Tolerance DNMG150404-M5,TP3501 10pcs

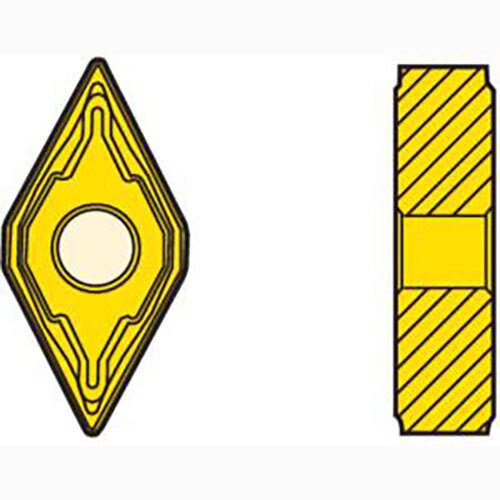

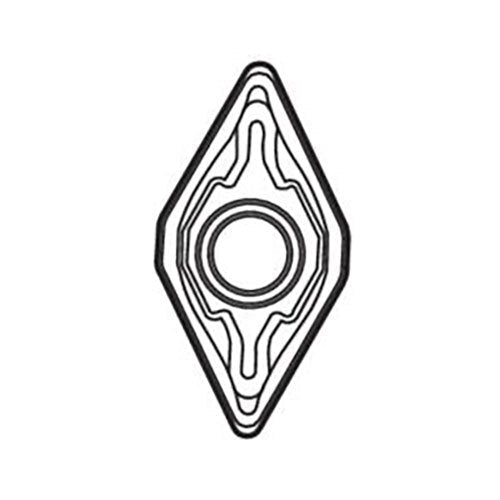

Turning Insert DNMG Insert Style - M5 Grade TP3501

• D shape code.
• G insert type, with hole and chip breaker on both faces.
• TP3501 insert grade.

TP3501 Insert Grade

• Duratomic® grade.
• Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steel especially including interrupted cuts.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M5 Chipbreaker Programme

• The choice for roughing by means of double-sided inserts.
• Intended for demanding operations at high feed rates in steel.
• Stainless steel and cast iron.
• Combines high edge strength with comparatively low cutting forces.
• Indicative machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
