Seco DNMG150604-MF1 TM2501 Turning Insert
Available

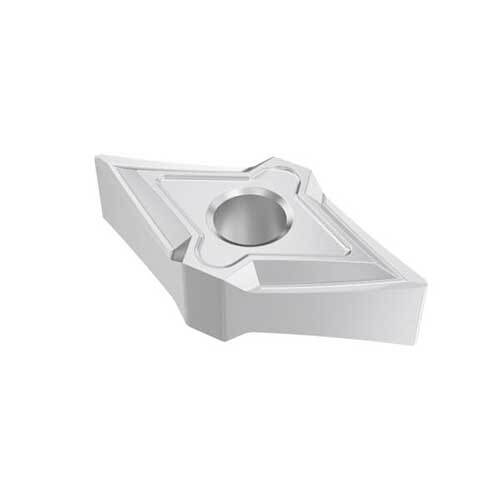

Genuine Seco 55° rhombic (diamond) turning insert, Grade TM2501 with MF1 chipbreaker.
Key Specifications
| Grade | TM2501 |
|---|---|

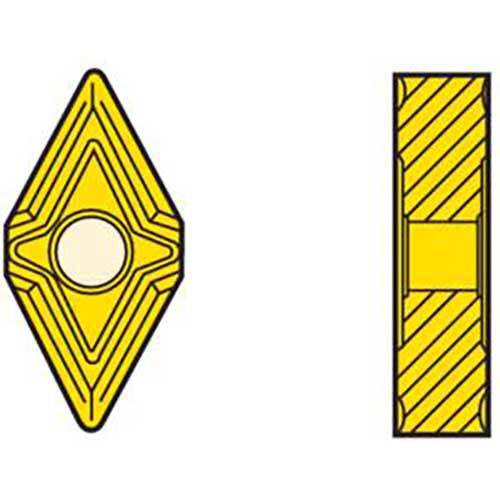

| Insert Shape | 55° rhombic (diamond) (ISO shape code D) |
| Chipbreaker | MF1 |
| Insert Details | G Insert Type. |
About Grade TM2501
Duratomic® grade. A highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness. First choice in austenitic stainless steel turning. Complements in steel turning with heavy intermittent cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the MF1 Chipbreaker
Chipbreaker is intended for machining stainless steel, superalloys, and titanium alloys. Type ..GG insert has a sharp, precision ground edge. Type ..MG insert has a lightly honed cutting edge for increased strength. MF1 is intended for use in semi-finishing and finishing applications. Indicative machining range: f = 0,08–0,30 mm/rev, ap = 0,2–3,5 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
DNMG150604-MF1 TM2501
Model Number: 03276285
-
DNMG150608-MF1 TM2501
Model Number: 03274162
