Turning Insert DNMG Insert Style - MF2 Grade TK1501: DNMG150608-MF2 TK1501

SKU: A0117020 | Model: 03064017

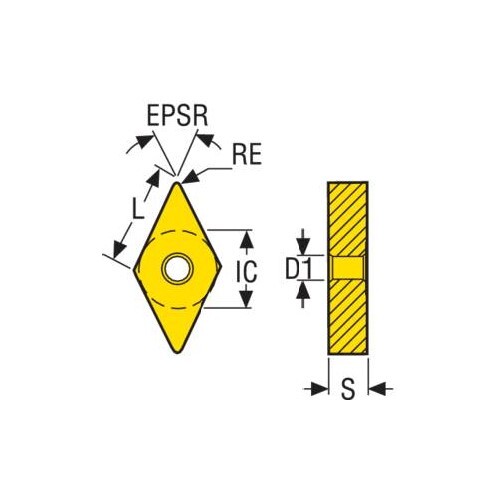

Seco Turning Insert D Shape Code 6.35 x 0.8 x 12.7mm G Insert Type - MF2 Grade TK1501 ± 0.13/± 0.05mm Tolerance DNMG150608-MF2,TK1501 10pcs

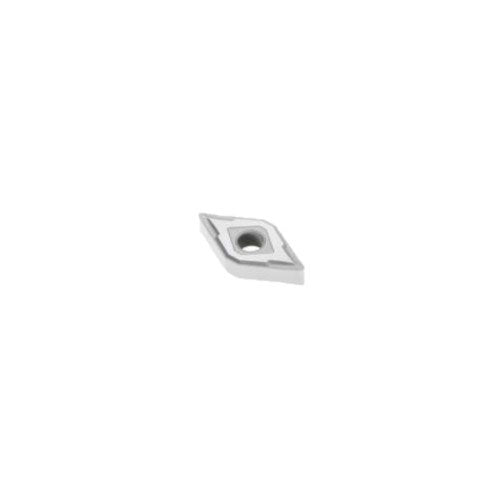

Turning Insert DNMG Insert Style - MF2 Grade TK1501

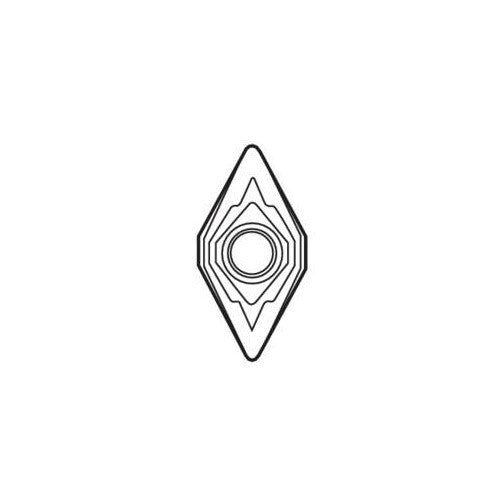

D shape code.

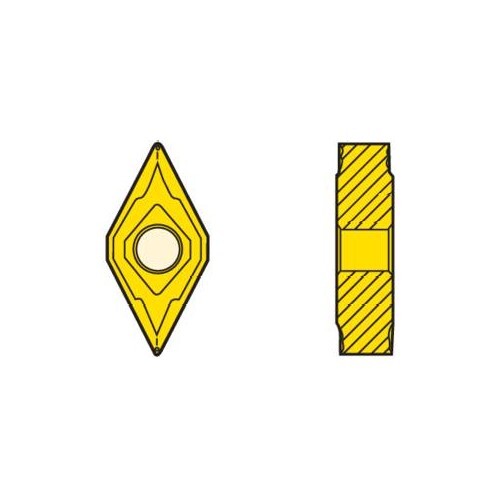

G insert type, with hole and chip breaker on both faces.

TK1501 insert grade.

TK1501 Insert Grade

Duratomic® grade.

A highly wear-resistant grade for cast irons in general as well as in steels.

The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.

Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MF2 Chipbreaker Programme

First choice for finishing with negative inserts.

Suitable for chip control at depths of cut down to 0,25 mm, provided that the feed rate is in excess of 0,25 mm/rev.

Good capacity for medium rough machining.

Indicative machining range: f = 0,10–0,40 mm/rev, ap = 0,2–3,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.

Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.

to boost the productivity and tool life in your turning applications.

Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
