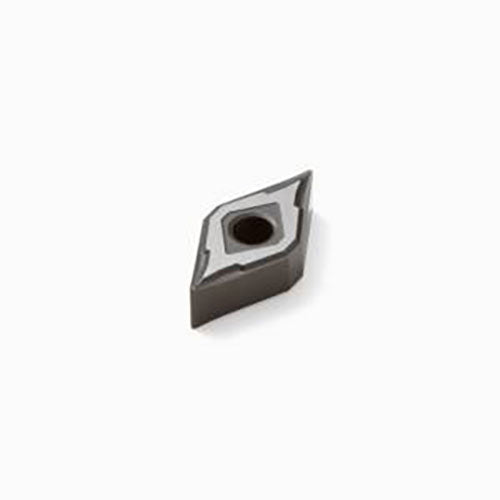

Seco Turning Insert D Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - MF2 Grade TP1030 ± 0.13/± 0.05mm Tolerance DNMG150408-MF2,TP1030 10pcs

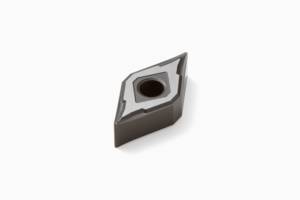

Turning Insert DNMG Insert Style - MF2 Grade TP1030

• D shape code.
• G insert type, with hole and chip breaker on both faces.
• TP1030 insert grade.

TP1030 Insert Grade

• Coated highly wear-resistant cermet grade for high surface finish and productivity requirements mainly used in steels and stainless steels.
• Ti-Al-Si-N nanolaminate coating.

MF2 Chipbreaker Programme

• First choice for finishing with negative inserts.
• Suitable for chip control at depths of cut down to 0,25 mm, provided that the feed rate is in excess of 0,25 mm/rev.
• Good capacity for medium rough machining.
• Indicative machining range: f = 0,10–0,40 mm/rev, ap = 0,2–3,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
