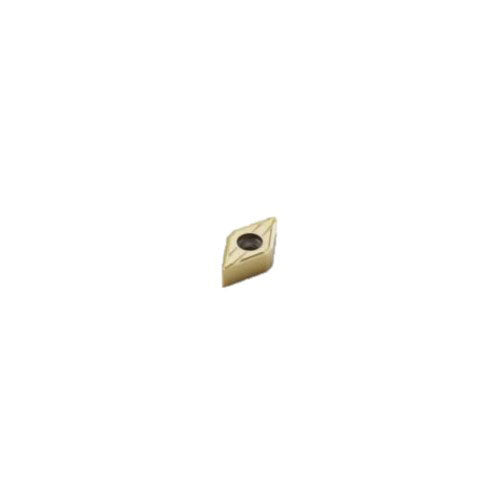

Seco DNMU110404-FF2 CP500 Turning Insert
Available
Genuine Seco 55° rhombic (diamond) turning insert, Grade CP500 with FF2 chipbreaker.
Key Specifications
| Grade | CP500 |
|---|---|
| Substrate / Coating | Carbide PVD |
| Insert Shape | 55° rhombic (diamond) (ISO shape code D) |
| Chipbreaker | FF2 |
| Insert Details | D shape code. U insert type, negative insert with hole and chip-breaker on both faces for tool holders with pin lock only. CP500 insert grade. |
About Grade CP500
Carbide PVD. Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys. Especially suitable in intermittent cuts. (Ti, Al)N + TiN.
About the FF2 Chipbreaker
Chipbreaker for negative inserts. Intended for fine-finishing and semi-finishing of steels and stainless steels. The positive, tight chip groove offers light cutting action combined with superior chip forming. Indicative machining range: f = 0,08–0,30 mm/rev, ap = 0,2–1,5 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
DNMU110404-FF2 CP500
Model Number: 02787045
-
DNMU110408-FF2 CP500
Model Number: 02787050
