Seco DNMU110402-M3 TP3501 Turning Insert
Available

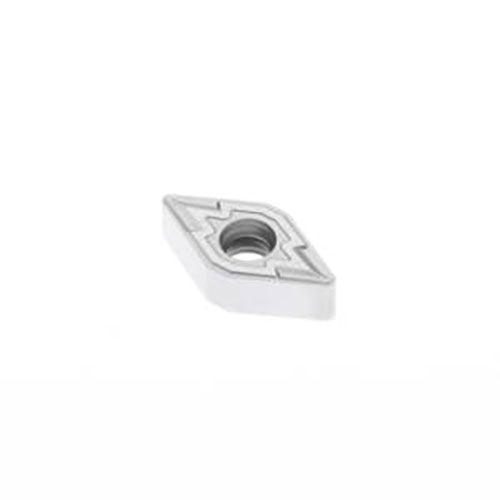

Genuine Seco 55° rhombic (diamond) turning insert, Grade TP3501 with M3 chipbreaker.
Key Specifications
| Grade | TP3501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 55° rhombic (diamond) (ISO shape code D) |
| Chipbreaker | M3 |
| Insert Details | D shape code. U insert type, negative insert with hole and chip-breaker on both faces for tool holders with pin lock only. TP3501 insert grade. |
About Grade TP3501
Carbide CVD. Duratomic® grade. Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steel especially including interrupted cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the M3 Chipbreaker
First choice for medium-rough machining and also the most versatile Seco chipbreaker. In most cases, it is the only chipbreaker needed. It offers the best useful life and best chip breaking in a wide range of cutting data and workpiece materials. Suitable for precision forged and cast workpieces (NNS or Near Net Shape workpieces) as regards both chip control and edge strength. Indicative machining range: f = 0,15-0,50 mm/rev, ap = 0,5-5,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
DNMU110402-M3 TP3501
Model Number: 03099680
-
DNMU110404-M3 TP3501
Model Number: 03093866
-
DNMU110408-M3 TP3501
Model Number: 03093868
