Seco DNMX110404W-MF2 TP1501 Turning Insert
Available

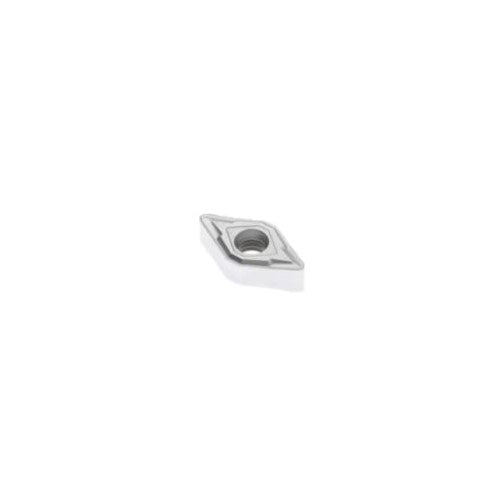

Genuine Seco 55° rhombic (diamond) turning insert, Grade TP1501.
Key Specifications
| Grade | TP1501 |
|---|---|
| Substrate / Coating | Carbide CVD |

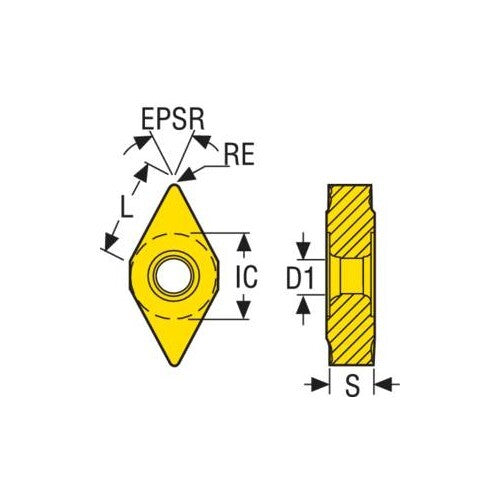

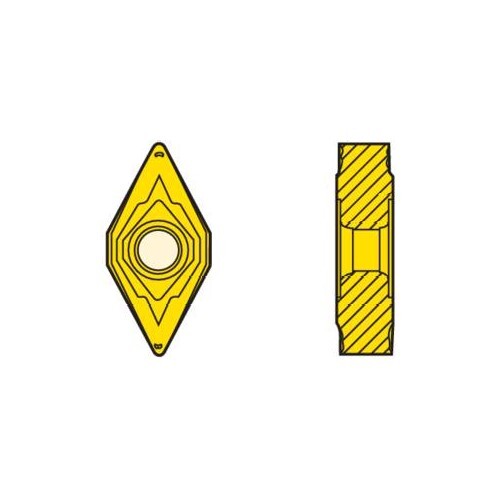

| Insert Shape | 55° rhombic (diamond) (ISO shape code D) |
| Insert Details | D shape code. X insert type. TP1501 insert grade. |
About Grade TP1501

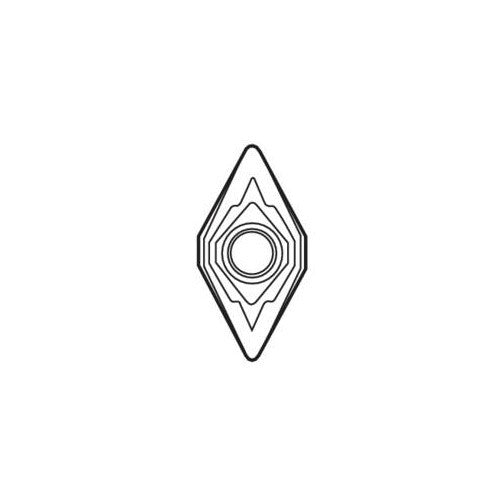

Carbide CVD. Duratomic® grade. Highly heat and wear-resistant grade extremely well suited for productive general turning of steel and a useful backup in other material groups. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome). W-MF2 Chipbreaker Prog.ramme First choice for finishing with both positive and negative inserts. Chipbreaker is suitable for finishing machining of steel, stainless steel and cast iron at high feed rates giving good surface finish. Indicative machining range: f = 0,05-0,60 mm/rev, ap = 0,5-4,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
DNMX110404W-MF2 TP1501
Model Number: 02960049
-
DNMX110408W-MF2 TP1501
Model Number: 02960051
-
DNMX150408W-M3 TP1501
Model Number: 02959994
-
DNMX150608W-M3 TP1501
Model Number: 02959997
-
DNMX150612W-M3 TP1501
Model Number: 02959999
