Seco TPUN160304,HX Turning Insert
The price shown is for the pack.
Available
This is the Turning Insert HX Grade (TPUN).

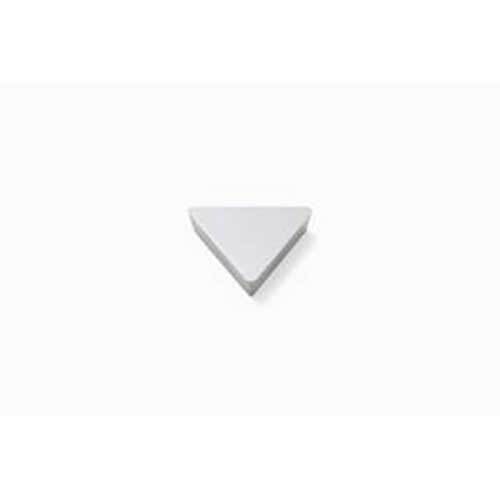

Genuine Seco triangular turning insert, Grade HX.
Key Specifications
| Grade | HX |
|---|---|
| Substrate / Coating | Carbide Uncoated |

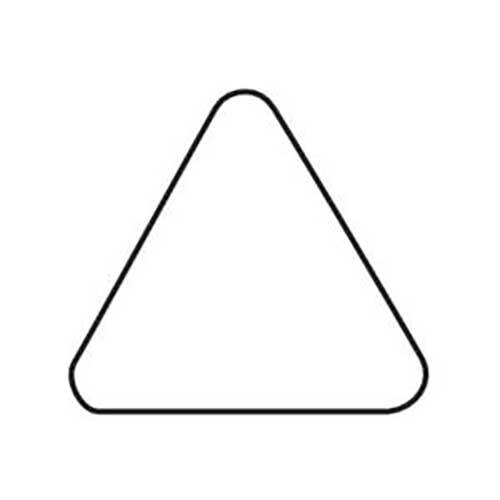

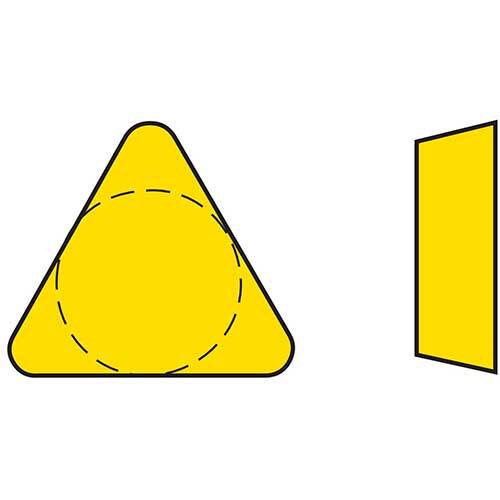

| Insert Shape | triangular (ISO shape code T) |
| Insert Details | HX grade. T, Insert Shape Code (SC). 11, Insert Seat Size Code (SSC). |
About Grade HX
Carbide Uncoated. A universal uncoated grade intended for machining of cast iron and hardened steels useful also in non-ferrous materials.
About Seco Turning Inserts
Seco Turning Insert Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses. We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Product details

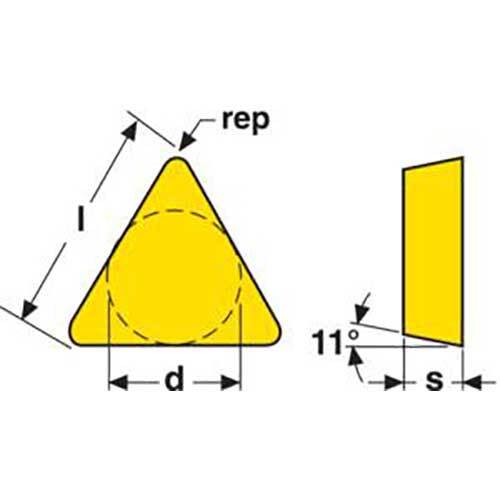

| Model | 74010717 |
|---|---|
| Corner Radius (RE) mm | 0.4 |
| Insert Included Angle (epsr) Deg | 60.0 deg |
| Grade Type | Carbide Uncoated |
| Theoretical Cutting Edge Length (L) mm | 16.5 |
| Cutting Edge Count (CEDC) | 3 |
| Designation | TPUN160304,HX |
| Cutting Edge Effective Length (LE) mm | 16.1 |
| Inscribed Circle Diameter (IC) mm | 9.52 |
| Insert Thickness (S) mm | 3.18 |
| Insert Seat Size Code (SSC) | 16 |
| Insert Shape Code (SC) | T |
| Clearance Angle Major (an) Deg | 11.0 deg |
| Insert Hand (IH) | Neutral |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert HX Grade (TPUN): TPUN160304,HX
SKU: A0121947 | Model: 74010717
Seco General Turning Insert 0.4 x 3.18 x 16.5mm HX Grade Neutral (TPUN) TPUN160304,HX Pack of 10
Turning Insert HX Grade (TPUN)
HX grade.
T, Insert Shape Code (SC).
16, Insert Seat Size Code (SSC).
About HX Grade
Carbide Uncoated.
A universal uncoated grade intended for machining of cast iron and hardened steels useful also in non-ferrous materials.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers.
Supporting inserts of different shapes, sizes, and thicknesses.
We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
