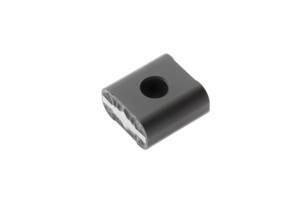

Seco LNMX191940-RR94 TP0501 Turning Insert
Available
Genuine Seco rectangular turning insert, Grade TP0501.
Key Specifications
| Grade | TP0501 |
|---|---|
| Insert Shape | rectangular (ISO shape code L) |
| Insert Details | L shape code. X insert type. TP0501 insert grade. |
About Grade TP0501
Duratomic® grade. A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome). LNMX-RR94 Inserts for Railway Wheel Re-turning RRR94 – for the moderately damaged wheels. D.O.C. and feed recommendation. LNMX19, ap = 2-5 mm; f = 0,45-1,40 mm/rev. LNMX30, ap = 2-10 mm; f = 0,55-1,80 mm/rev.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-

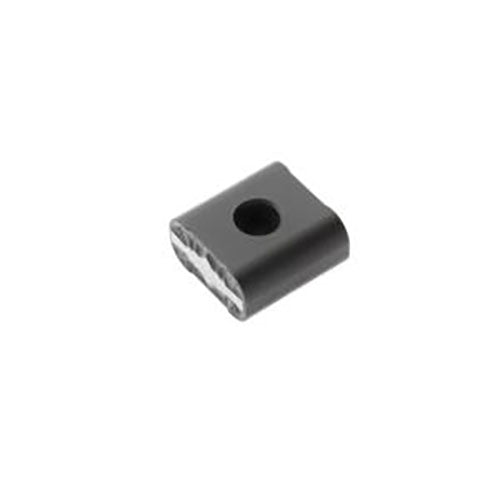

LNMX191940-RR94 TP0501
Model Number: 02960792
-

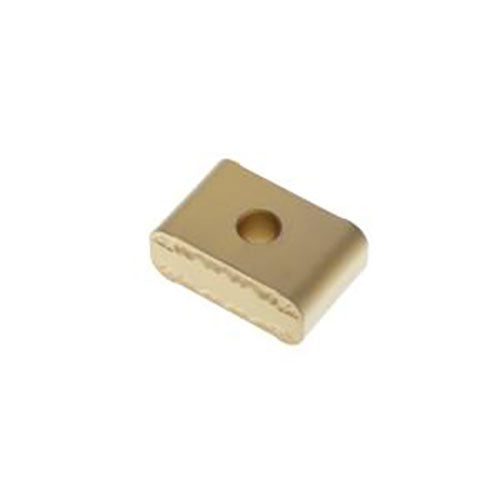

LNMX301940-RR94 TP0501
Model Number: 02960812
