Seco SNMG120408-M5 TM1501 Turning Insert
Available

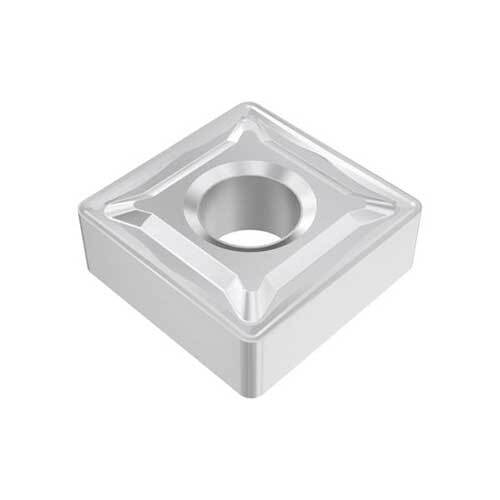

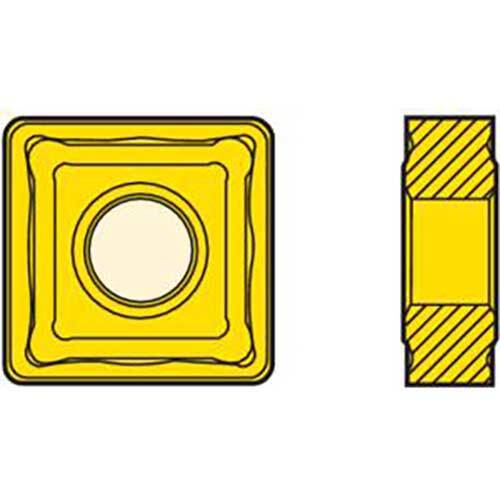

Genuine Seco square turning insert, Grade TM1501 with M5 chipbreaker.
Key Specifications
| Grade | TM1501 |
|---|---|
| Insert Shape | square (ISO shape code S) |
| Chipbreaker | M5 |
| Insert Details | S shape code. G Insert Type. |
About Grade TM1501
Duratomic® grade. The highly resistant and optimized grade for many continuous cuts in stainless steel turning applications. Complements in mixes of steel and stainless steel turning. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the M5 Chipbreaker
The choice for roughing by means of double-sided inserts. Intended for demanding operations at high feed rates in steel. Stainless steel and cast iron. Combines high edge strength with comparatively low cutting forces. Indicative machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
SNMG120408-M5 TM1501
Model Number: 03274165
-
SNMG120412-M5 TM1501
Model Number: 03274167
