Seco SNMG120412-M5 TP1501 Turning Insert
The price shown is for the pack.
Available

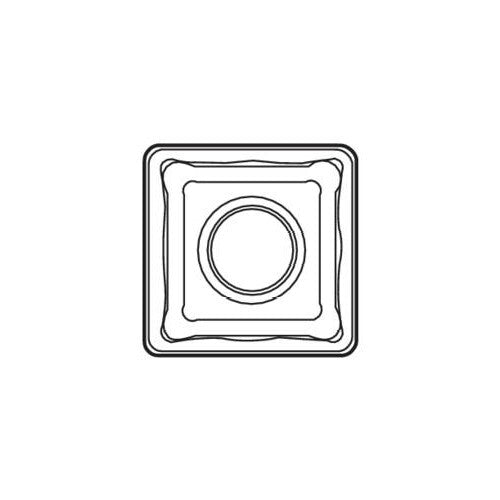

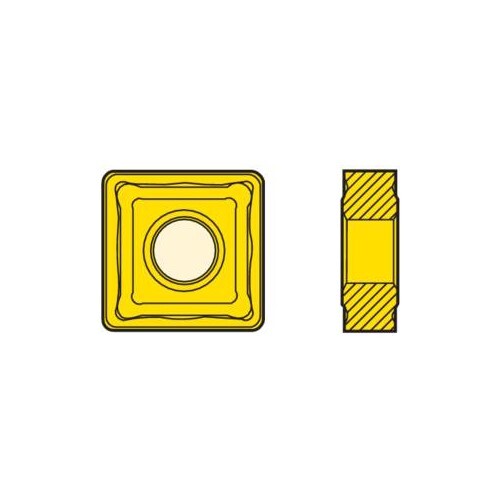

This is the Turning Insert SNMG Insert Style - M5 Grade TP1501.
Genuine Seco square turning insert, Grade TP1501 with M5 chipbreaker.
Key Specifications
| Grade | TP1501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | square (ISO shape code S) |
| Chipbreaker | M5 |
| Insert Details | S shape code. G insert type, with hole and chip breaker on both faces. TP1501 insert grade. |
About Grade TP1501
Carbide CVD. Duratomic® grade. Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the M5 Chipbreaker
The choice for roughing by means of double-sided inserts. Intended for demanding operations at high feed rates in steel. Stainless steel and cast iron. Combines high edge strength with comparatively low cutting forces. Indicative machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Product details

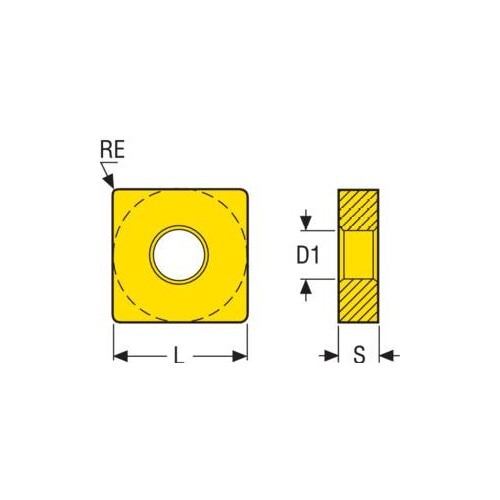

| Model | 02960516 |
|---|---|
| Corner Radius (RE) mm | 1.19 |
| Insert Included Angle (epsr) Deg | 90.0 deg |
| Chipbreaker Programme | M5 |
| Grade Type | Carbide CVD |
| Theoretical Cutting Edge Length (L) mm | 12.7 |
| Cutting Edge Count (CEDC) | 8 |
| Designation | SNMG120412-M5 TP1501 |
| Cutting Edge Effective Length (LE) mm | 11.51 |
| Inscribed Circle Diameter (IC) mm | 12.7 |
| Fixing Hole Diameter (d1) Mm | 5.2 |
| Insert Thickness (S) mm | 4.76 |
| Insert Seat Size Code (SSC) | 12 |
| Insert Shape Code (SC) | S |
| Clearance Angle Major (an) Deg | 0.0 deg |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert SNMG Insert Style - M5 Grade TP1501: SNMG120412-M5 TP1501
SKU: A0117522 | Model: 02960516
Seco Turning Insert S Shape Code 4.76 x 1.19 x 12.7mm G Insert Type - M5 Grade TP1501 ± 0.13/± 0.05mm Tolerance SNMG120412-M5,TP1501 10pcs
Turning Insert SNMG Insert Style - M5 Grade TP1501
S shape code.
G insert type, with hole and chip breaker on both faces.
TP1501 insert grade.
TP1501 Insert Grade
Duratomic® grade.
Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
M5 Chipbreaker Programme
The choice for roughing by means of double-sided inserts.
Intended for demanding operations at high feed rates in steel.
Stainless steel and cast iron.
Combines high edge strength with comparatively low cutting forces.
Indicative machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
