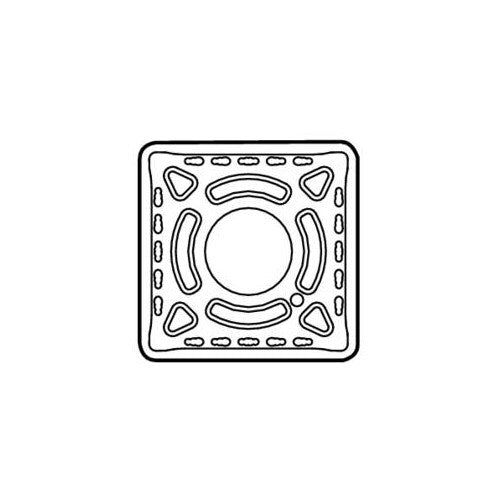

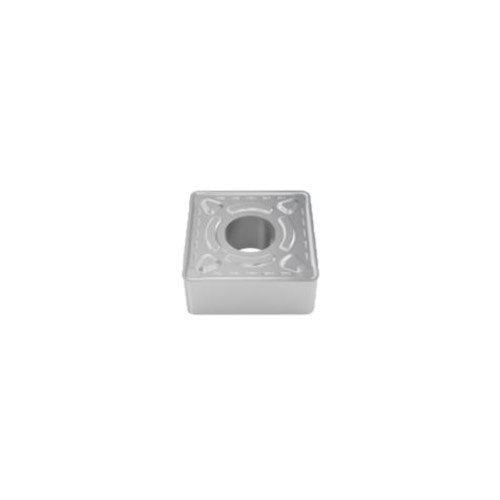

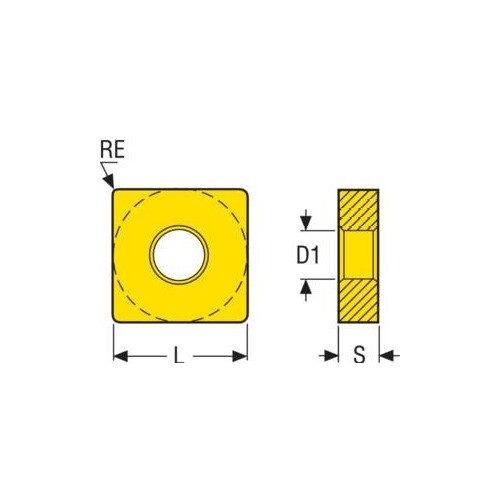

Seco SNMG150616-M6 TP0501 Turning Insert
Available
Genuine Seco square turning insert, Grade TP0501 with M6 chipbreaker.
Key Specifications
| Grade | TP0501 |
|---|---|
| Insert Shape | square (ISO shape code S) |
| Chipbreaker | M6 |
| Insert Details | S shape code. G insert type, with hole and chip breaker on both faces. TP0501 insert grade. |
About Grade TP0501
Duratomic® grade. A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

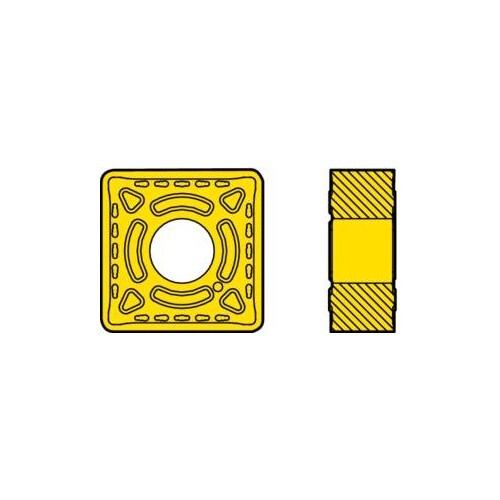

About the M6 Chipbreaker
Strong double-sided chipbreaker, intended for semi-roughing and roughing of steel. A well-balanced design combining excellent chip control and relatively low cutting forces which provides reliable cutting action in both continuous as well as interrupted cuts. Well suited also for machining of ferritic and martensitic stainless steels. Indicative machining range: f = 0,2-0,8 mm/rev, ap = 1,0-7,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
SNMG150616-M6 TP0501
Model Number: 02959904
-
SNMG190616-M6 TP0501
Model Number: 02975072
