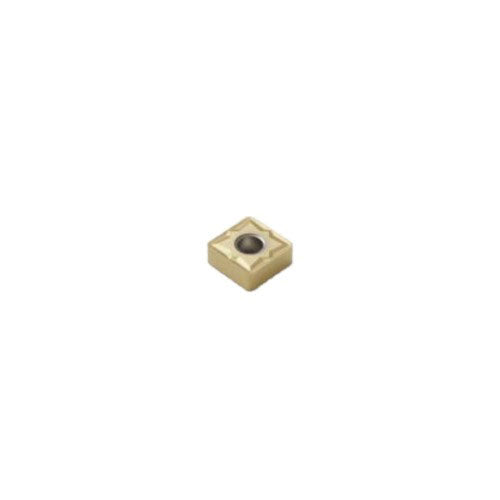

Seco SNMG120408-MR3 CP500 Turning Insert
The price shown is for the pack.
Available
Genuine Seco square turning insert, Grade CP500 with MR3 chipbreaker.
Key Specifications
| Grade | CP500 |
|---|---|
| Substrate / Coating | Carbide PVD |
| Insert Shape | square (ISO shape code S) |
| Chipbreaker | MR3 |
| Insert Details | S shape code. G insert type, with hole and chip breaker on both faces. CP500 insert grade. |
About Grade CP500
Carbide PVD. Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys. Especially suitable in intermittent cuts. (Ti, Al)N + TiN.
About the MR3 Chipbreaker
Chipbreaker with a positive cutting rake angle that reduces cutting forces and gives a very high edge strength. Intended for medium-rough and rough machining of superalloys, titanium alloys and hardened steel. Indicative machining range: f = 0,2–0,6 mm/rev, ap = 1,5–7,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

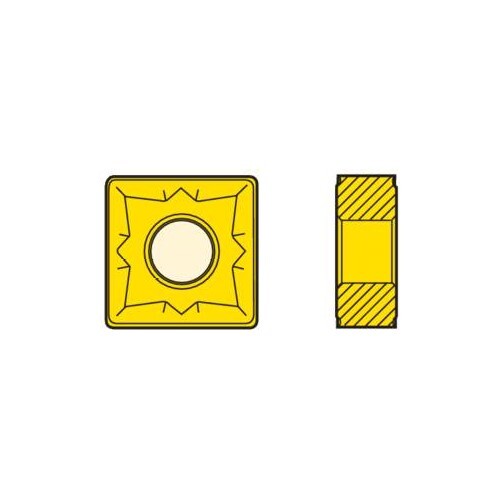

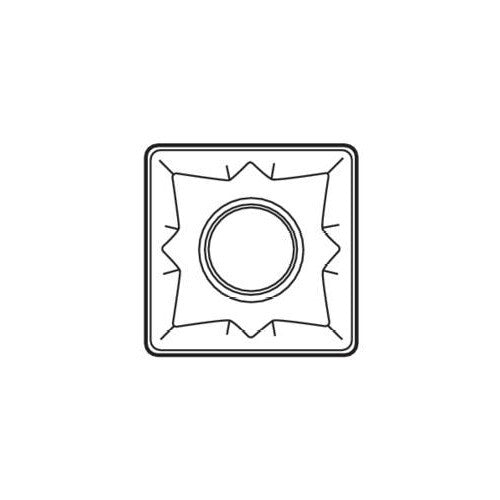

Turning Insert SNMG Insert Style - MR3 Grade CP500: SNMG120408-MR3 CP500
SKU: A0116823 | Model: 00099812

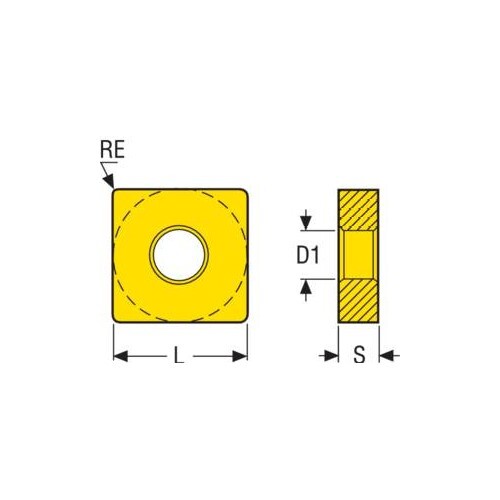

Seco Turning Insert S Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - MR3 Grade CP500 ± 0.13/± 0.05mm Tolerance SNMG120408-MR3,CP500 10pcs
Turning Insert SNMG Insert Style - MR3 Grade CP500
S shape code.
G insert type, with hole and chip breaker on both faces.
CP500 insert grade.
CP500 Insert Grade
Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys.
Especially suitable in intermittent cuts.
(Ti, Al)N + TiN.
MR3 Chipbreaker Programme
Chipbreaker with a positive cutting rake angle that reduces cutting forces and gives a very high edge strength.
Intended for medium-rough and rough machining of superalloys, titanium alloys and hardened steel.
Indicative machining range: f = 0,2–0,6 mm/rev, ap = 1,5–7,0 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
