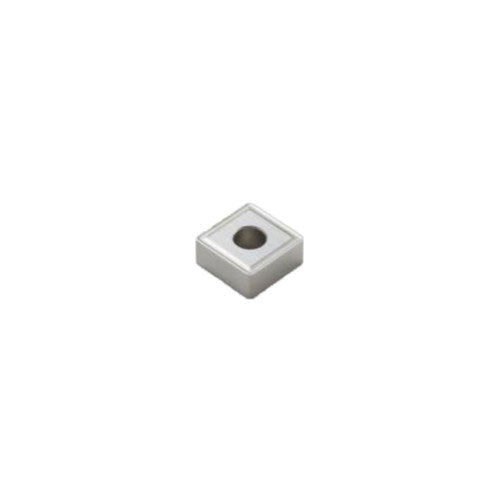

Seco SNMG120408-MR4 883 Turning Insert
Available
Genuine Seco square turning insert, Grade 883 with MR4 chipbreaker.
Key Specifications
| Grade | 883 |
|---|---|
| Substrate / Coating | Carbide uncoated |
| Insert Shape | square (ISO shape code S) |
| Chipbreaker | MR4 |

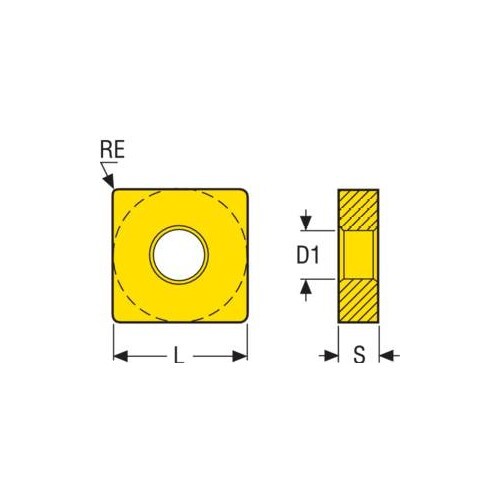

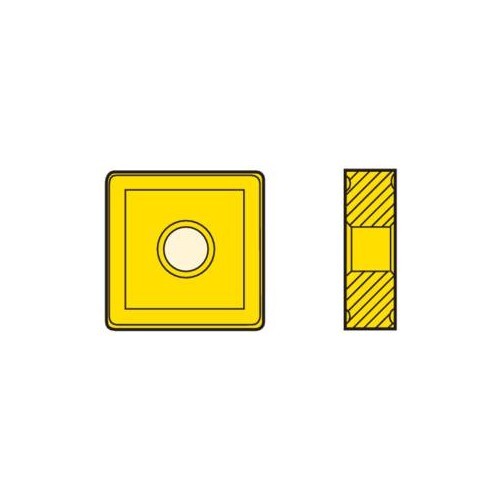

| Insert Details | S shape code. G insert type, with hole and chip breaker on both faces. 883 insert grade. |
About Grade 883
Carbide uncoated. Relatively hard and still tough uncoated micrograin grade for machining of titanium in roughing applications and also suitable for superalloys.
About the MR4 Chipbreaker
The MR4 has a negative T-land, which gives extremely high edge strength. The chip breaker is intended for more difficult machining applications on superalloys and titanium alloys, such as intermittent cuts and the machining of parts with the raw surface. Indicative machining range: f = 0,15–0,50 mm/rev, ap = 1,5–7,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
SNMG120408-MR4 883
Model Number: 00003195
-
SNMG120412-MR4 883
Model Number: 00003215
-
SNMG120416-MR4 883
Model Number: 74003240
-
SNMG150612-MR4 883
Model Number: 00003275
-
SNMG190612-MR4 883
Model Number: 00003325
-
SNMG190616-MR4 883
Model Number: 74003345
-
SNMG250924-MR4 883
Model Number: 00003385
