Seco SNMM150612-R4 TP2501 Turning Insert
The price shown is for the pack.
Available
Genuine Seco square turning insert, Grade TP2501 with R4 chipbreaker.
Key Specifications
| Grade | TP2501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | square (ISO shape code S) |
| Chipbreaker | R4 |
| Insert Details | S shape code. M insert type, with hole and chipbreaker on one face only. TP2501 insert grade. |
About Grade TP2501
Carbide CVD. Duratomic® grade. Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steel as well as many stainless steel and cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the R4 Chipbreaker
Chipbreaker for single-sided inserts. It has a positive cutting edge which gives low cutting forces. Indicative machining range: f = 0,2–0,6 mm/rev, ap = 2–10 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert SNMM Insert Style - R4 Grade TP2501: SNMM150612-R4 TP2501
SKU: A0117873 | Model: 02960755

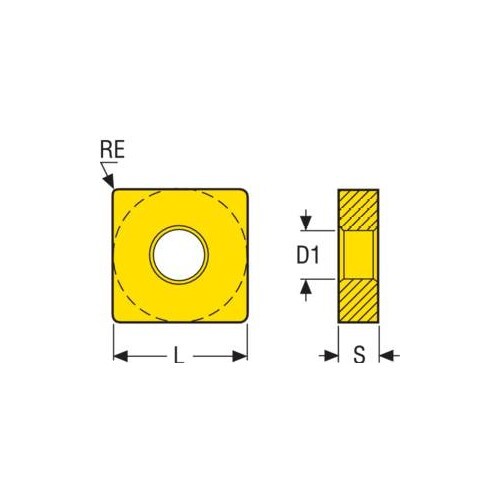

Seco Turning Insert S Shape Code 6.35 x 1.2 x 15.88mm M Insert Type - R4 Grade TP2501 ± 0.13/± 0.05mm Tolerance SNMM150612-R4,TP2501 10pcs
Turning Insert SNMM Insert Style - R4 Grade TP2501
S shape code.
M insert type, with hole and chipbreaker on one face only.
TP2501 insert grade.
TP2501 Insert Grade
Duratomic® grade.
Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steel as well as many stainless steel and cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
R4 Chipbreaker Programme
Chipbreaker for single-sided inserts. It has a positive cutting edge which gives low cutting forces.
Indicative machining range: f = 0,2–0,6 mm/rev, ap = 2–10 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
