Seco SNMM120408-R4 TP3501 Turning Insert
The price shown is for the pack.
Available

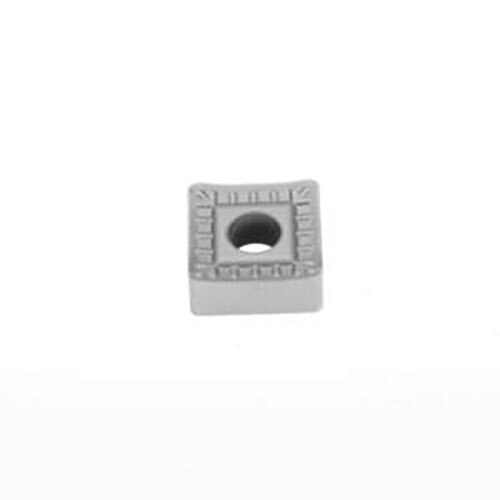

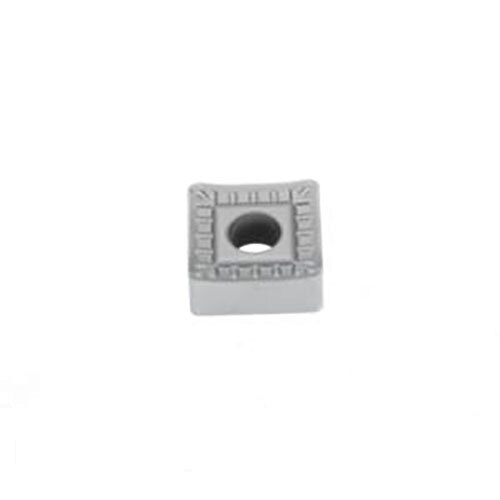

Genuine Seco square turning insert, Grade TP3501 with R4 chipbreaker.
Key Specifications
| Grade | TP3501 |
|---|---|
| Substrate / Coating | Carbide CVD |

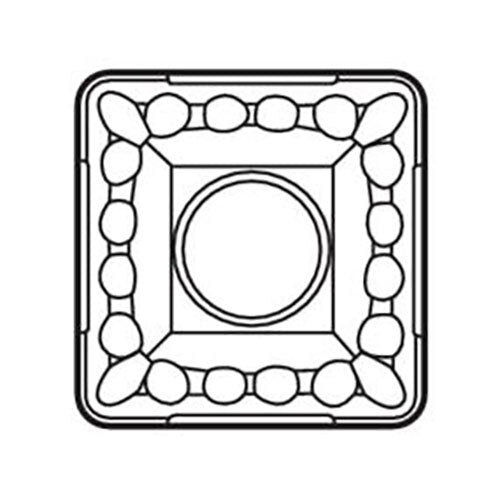

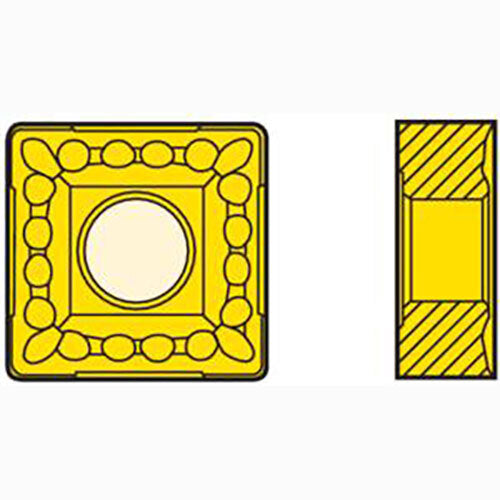

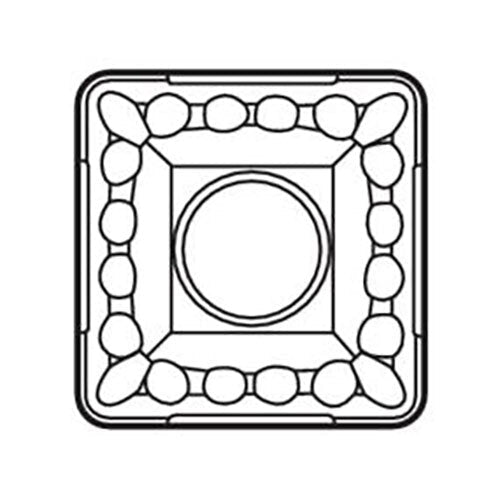

| Insert Shape | square (ISO shape code S) |
| Chipbreaker | R4 |
| Insert Details | S shape code. M insert type, with hole and chipbreaker on one face only. TP3501 insert grade. |
About Grade TP3501
Carbide CVD. Duratomic® grade. Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steel especially including interrupted cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the R4 Chipbreaker
Chipbreaker for single-sided inserts. It has a positive cutting edge which gives low cutting forces. Indicative machining range: f = 0,2–0,6 mm/rev, ap = 2–10 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert SNMM Insert Style - R4 Grade TP3501: SNMM120408-R4 TP3501
SKU: A0118107 | Model: 03096556
