Seco Turning Insert S Shape Code 6.35 x | AIMS Industrial

***Illustrations shown may vary from actual product***

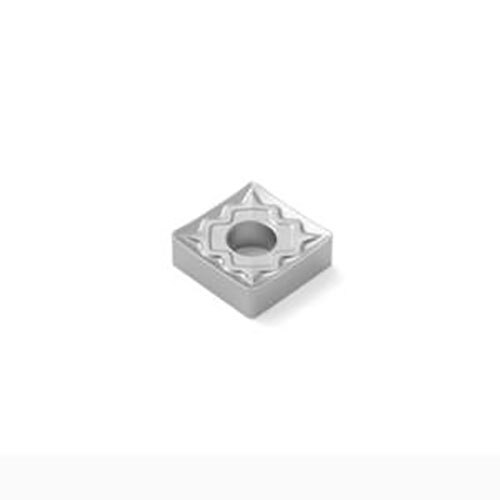

Seco Turning Insert S Shape Code 6.35 x 1.2 x 19.05mm M Insert Type - R6 Grade TP3501 ± 0.13/± 0.05mm Tolerance SNMM190612-R6,TP3501 10pcs

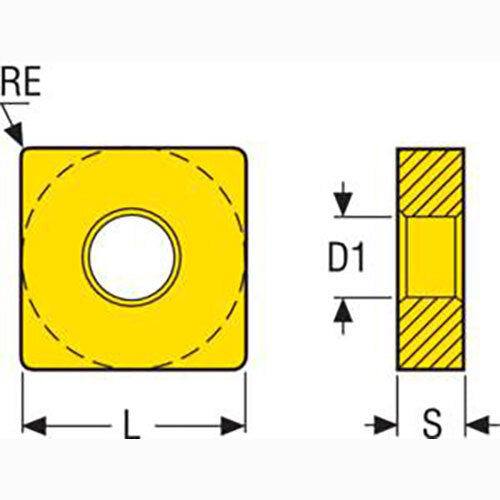

Turning Insert SNMM Insert Style - R6 Grade TP3501

• S shape code.
• M insert type, with hole and chipbreaker on one face only.
• TP3501 insert grade.

TP3501 Insert Grade

• Duratomic® grade.
• Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steel especially including interrupted cuts.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

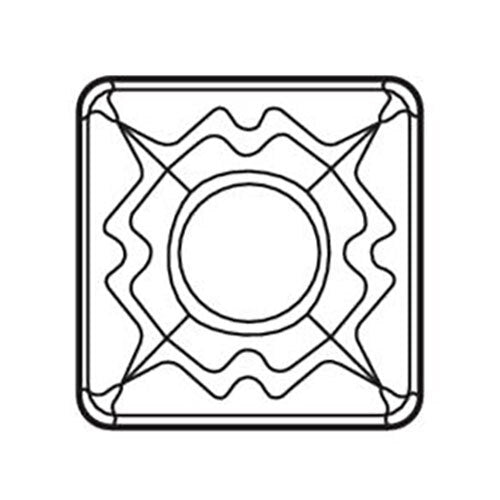

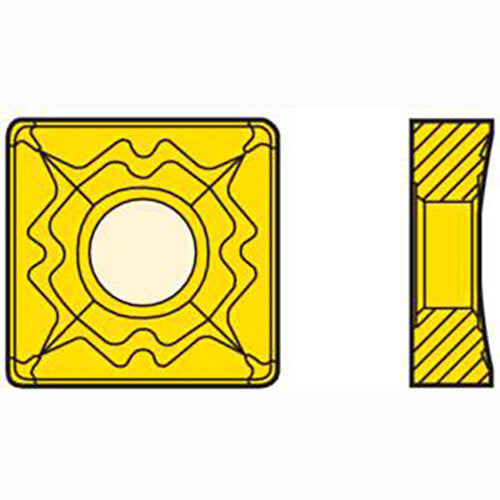

R6 Chipbreaker Programme

• Chipbreaker for single-sided inserts. Recommended for medium-roughing of stainless steel.
• Indicative machining range: f = 0,25–0,70 mm/rev, ap = 2–10 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• To boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
