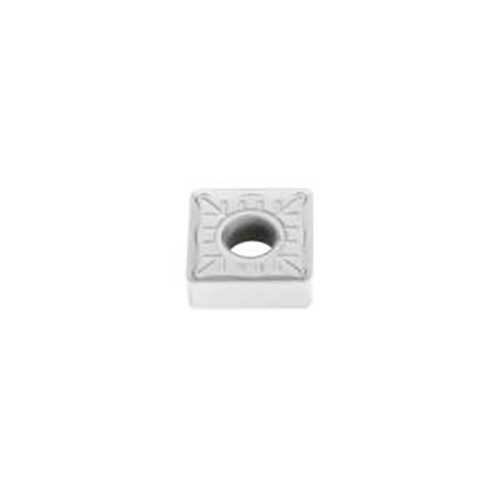

Turning Insert SNMM Insert Style - R7 Grade TP25

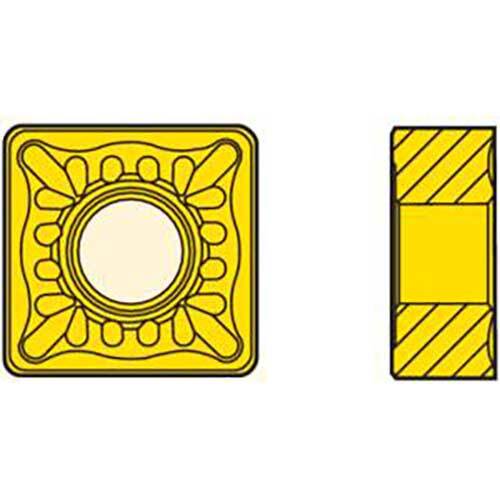

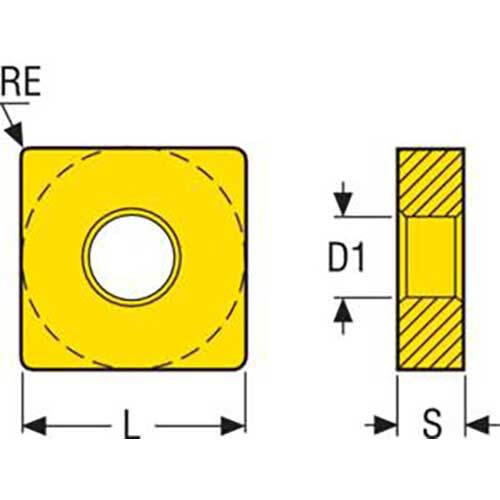

• S shape code.
• M insert type, with hole and chipbreaker on one face only.

TP25 Insert Grade

• The universal grade for highly versatile performance over a wide range of applications in steels, stainless steels, and cast irons.
• Trustworthy alternative at limited cutting speeds or high surface finishes requirements.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

R7 Chipbreaker Programme

• A strong but easy-cutting chipbreaker for single-sided inserts.
• The R7 is well suited for intermittent machining of both stainless and ordinary carbon steel.
• Indicative machining range: f = 0,4–1,6 mm/rev, ap = 3–18 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
