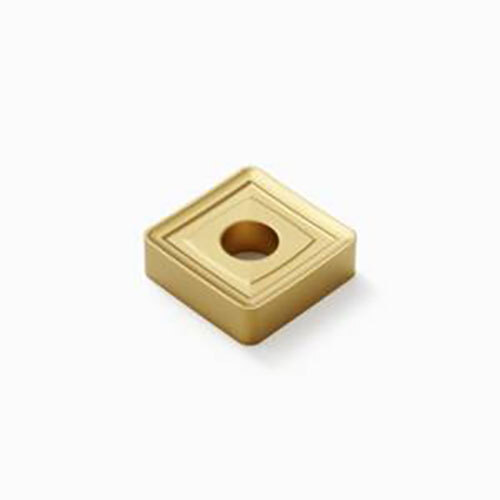

Seco Turning Insert S Shape Code 6.35 x 1.6 x 19.05mm M Insert Type - RR9 Grade TP40 ± 0.13/± 0.05mm Tolerance SNMM190616-RR9,TP40 10pcs

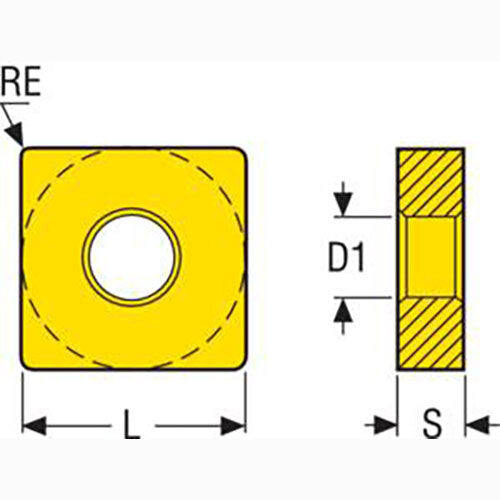

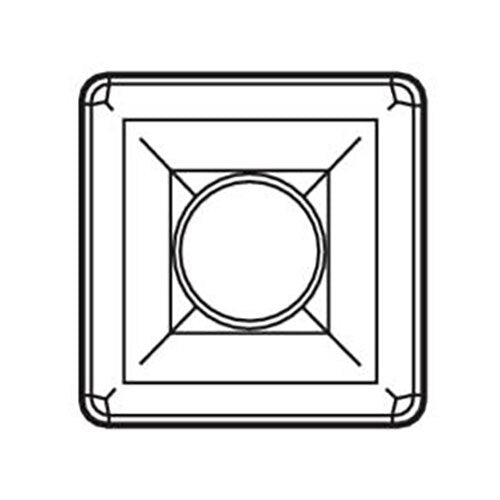

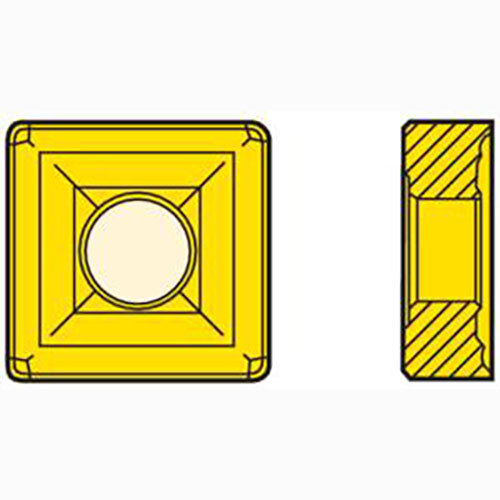

Turning Insert SNMM Insert Style - RR9 Grade TP40

• S shape code.
• M insert type, with hole and chipbreaker on one face only.
• TP40 insert grade.

TP40 Insert Grade

• Universal grade for a extremely secure performance in the most demanding application from steel, stainless steel to superalloys especially in castings and forgings.
• TiC/Ti(C,N) + TiN.

RR9 Chipbreaker Programme

• Extremely strong chipbreaker for single-sided negative inserts, for use at high feed rates.
• Suitable for difficult castings and forgings and for austenitic stainless steel.
• Indicative machining range: f = 0,5–1,2 mm/rev, ap = 2,5–15,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• To boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
