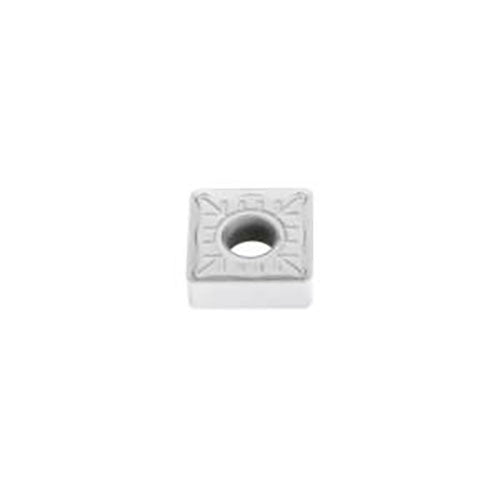

Seco Turning Insert S Shape Code 6.35 x 1.6 x 19.05mm M Insert Type - W-R7 Grade TP2501 ± 0.13/± 0.05mm Tolerance SNMM190616W-R7,TP2501 10pcs

Turning Insert SNMM Insert Style - W-R7 Grade TP2501

• S shape code.
• M insert type, with hole and chipbreaker on one face only.
• TP2501 insert grade.

TP2501 Insert Grade

• Duratomic® grade.
• Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

W-R7 Chipbreaker Prog.ramme

• A strong easy cutting chipbreaker for single-sided inserts.
• Intended for the highest feeds when medium roughing and roughing machining of steel, stainless steel and cast iron.
• Gives a good surface finish even at the higher feeds.
• Indicative machining range: f = 0,4-1,2 mm/rev, ap = 2,0-9,5 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• To boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
