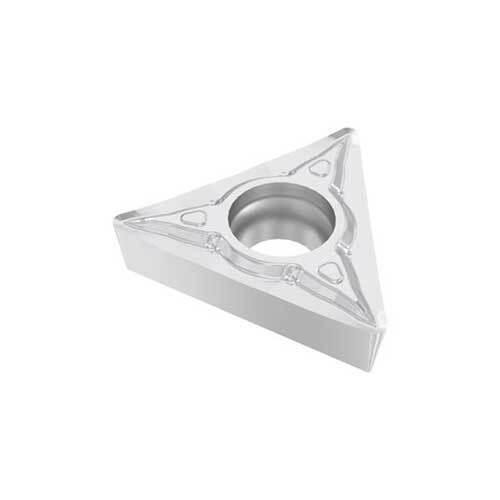

Turning Insert TCMT Insert Style - F1 7° Grade TM1501: TCMT16T304-F1 TM1501

SKU: A0158437 | Model: 03276594

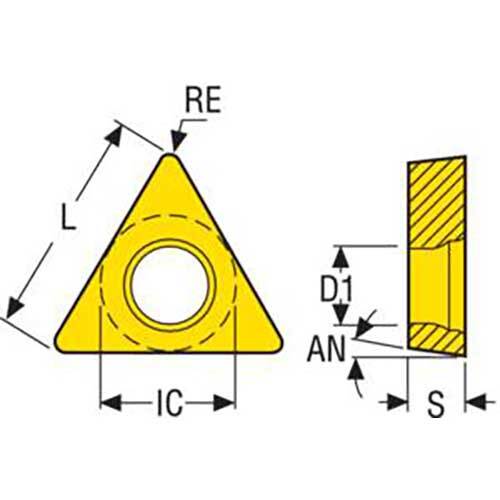

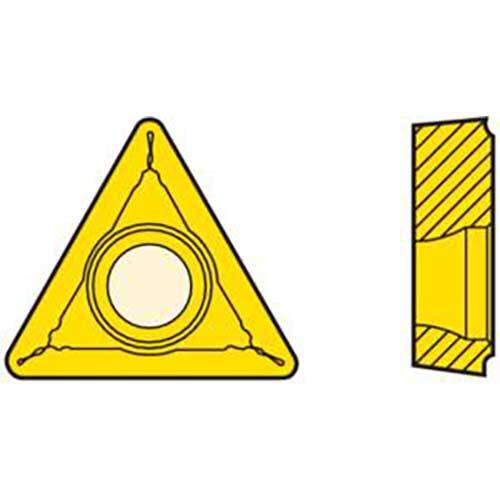

Designation TCMT16T304-F1 TM1501. Turning Insert TCMT Insert Style - F1 7° Grade TM1501

T shape code

T Insert Type.

7° insert side clearance angles.

TM1501 Insert Grade

Duratomic® grade.

The highly resistant and optimized grade for many continuous cuts in stainless steel turning applications.

Complements in mixes of steel and stainless steel turning.

Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

F1 Chipbreaker Programme

Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties.

Suitable for high feed rates at fine depths of cut in precision forgings and castings.

Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.

Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.

Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.

to boost the productivity and tool life in your turning applications.

Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
