Seco TNMG220408-M1 883 Turning Insert
The price shown is for the pack.
Available

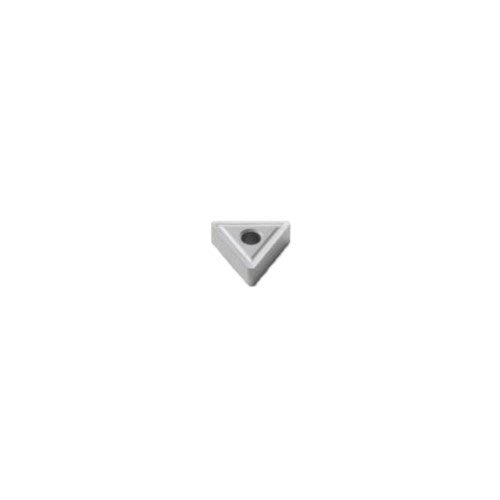

Genuine Seco triangular turning insert, Grade 883 with M1 chipbreaker.
Key Specifications
| Grade | 883 |
|---|---|
| Substrate / Coating | Carbide uncoated |

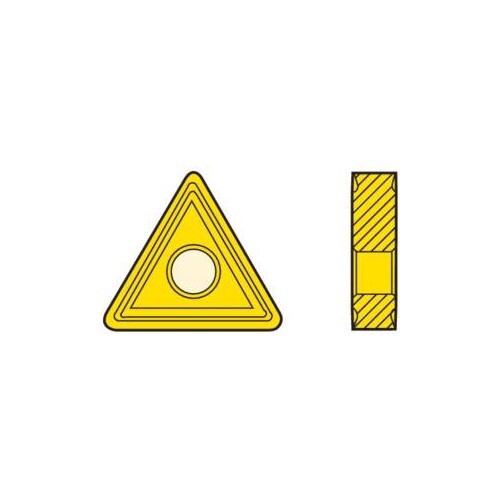

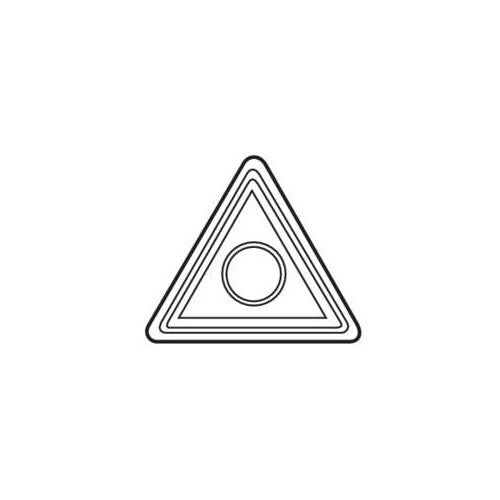

| Insert Shape | triangular (ISO shape code T) |
| Chipbreaker | M1 |
| Insert Details | T shape code. G insert type, with hole and chip breaker on both faces. 883 insert grade. |
About Grade 883
Carbide uncoated. Relatively hard and still tough uncoated micrograin grade for machining of titanium in roughing applications and also suitable for superalloys.
About the M1 Chipbreaker
Chipbreaker intended for superalloys and titanium alloys. It has a positive cutting rake angle which is slightly honed to increase the edge strength. Also available with a perfectly sharp edge (type ..GG insert). The M1 is intended for light roughing and for semi-finishing. Indicative machining range: f = 0,2–0,4 mm/rev, ap = 1,5–5,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert TNMG Insert Style - M1 Grade 883: TNMG220408-M1 883
SKU: A0116702 | Model: 00040604
